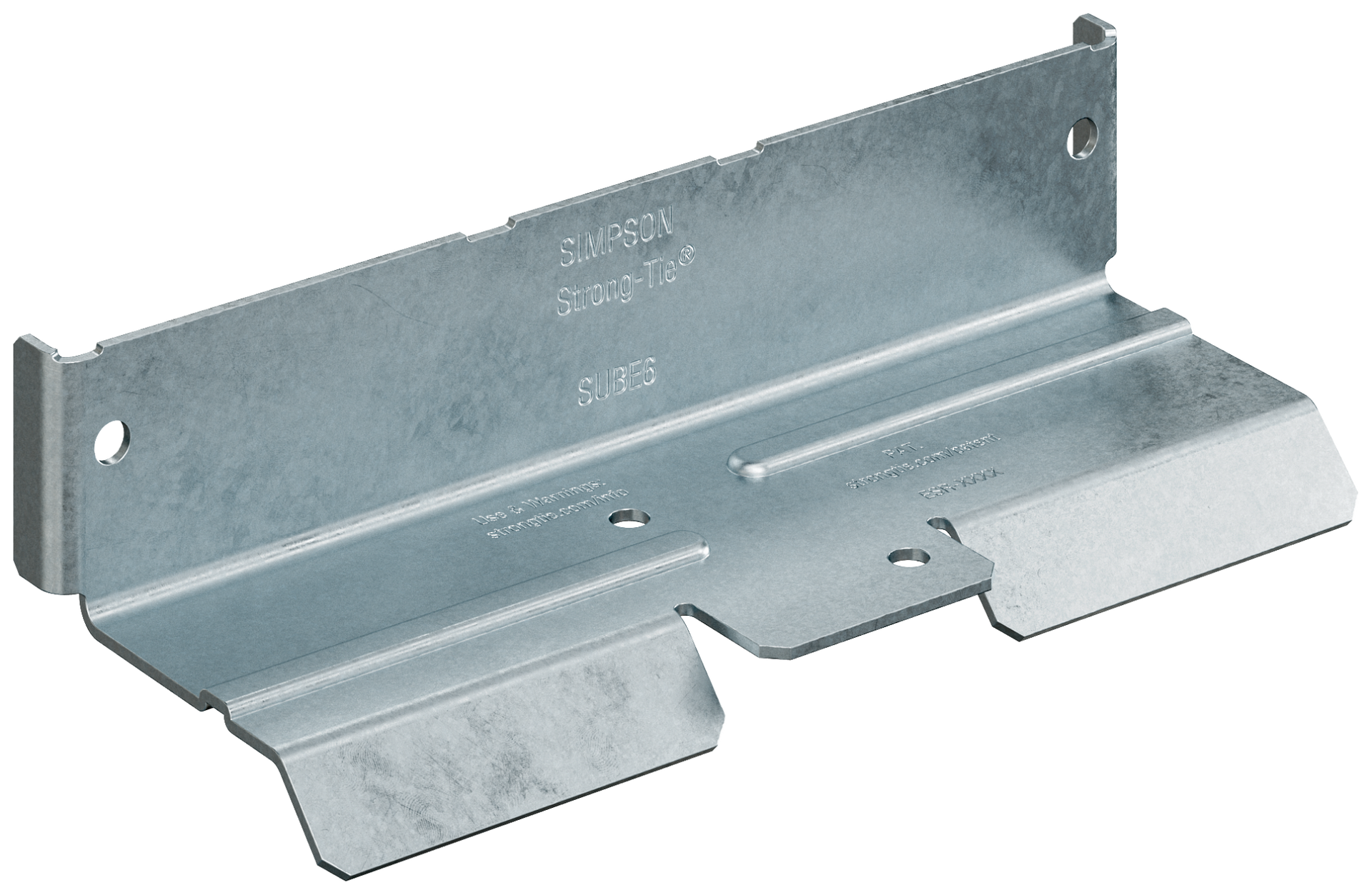

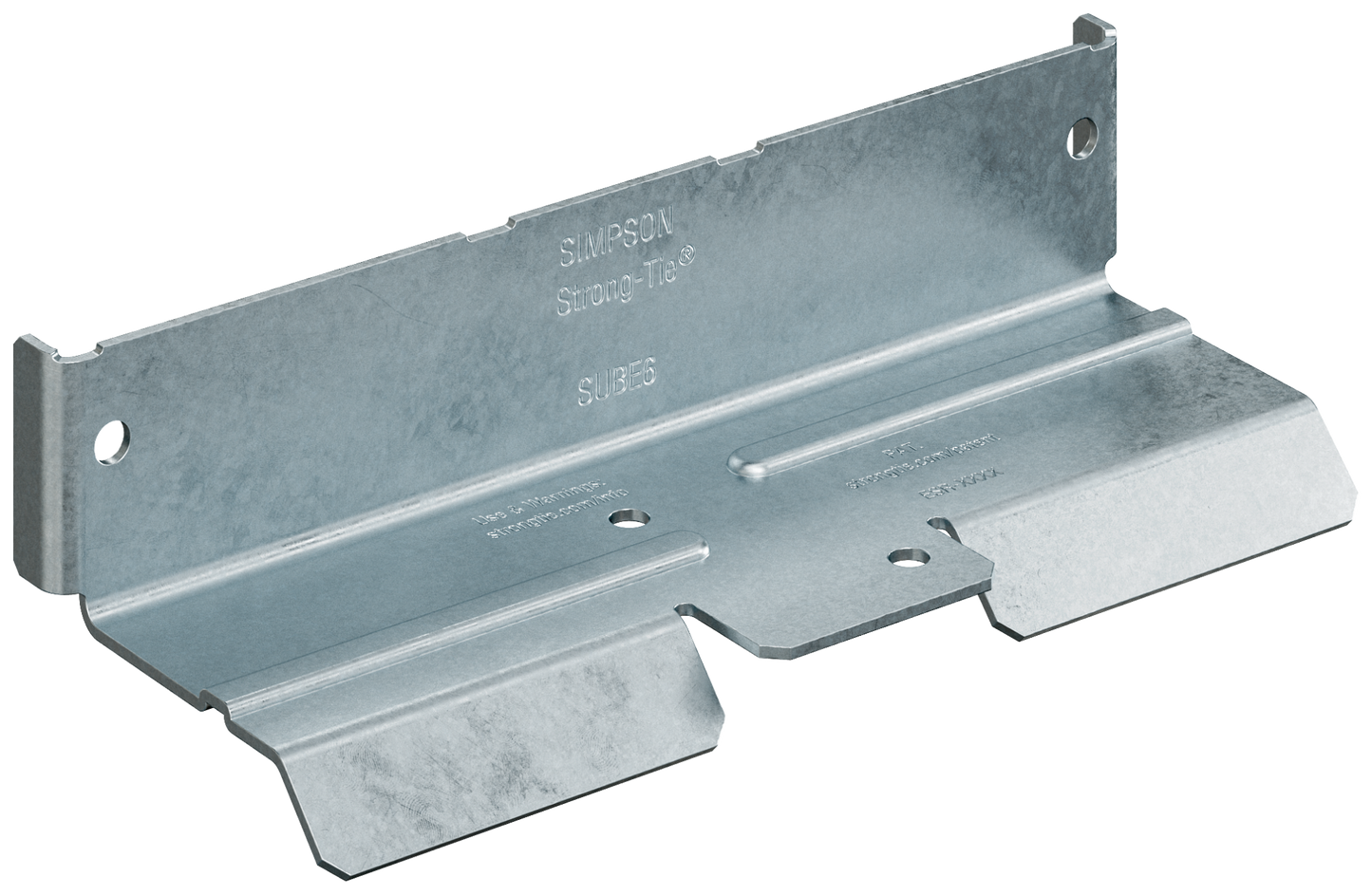

Simpson Strong-Tie SUBE6-R50 SUBE Bridging Connector for 6-in. Stud (Qty-50) (Pack of 40)

With more than 50 years of experience in product design, testing and manufacturing, Simpson Strong-Tie provides comprehensive structural solutions for cold-formed steel construction. From steel-to-steel connections to full-scale lateral solutions and curtain wall connectors, we remain committed to developing new technology that helps to advance the cold-formed steel industry. The Simpson Strong-Tie® SUBE wall-stud bridging connector for cold-formed steel (CFS) is designed to connect cold-rolled channel (CRC) at the end of a wall or single-stud jamb condition, or at the ends of panel walls, curtain walls or load-bearing conditions. The connector is installed on the open side of the stud with screws to the stud lips, effectively limiting drywall buildup and creating a safer working environment as sharp-point screw perforations through the web are eliminated. Additionally, the SUBE does not require any special tools or clamping during installation as it features outer flanges that enable the connector to fit snugly over the open side of the stud. By eliminating the potential for drywall bulge and onsite safety issues, you'll be able to save time and improve efficiencies on the jobsite.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Tested to include stud-web strength and stiffness in the tabulated design values
• Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs
• Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.)
• Improves onsite safety by eliminating sharp-point screw perforations through the web in traditional clip attachments to wall-end stud webs
• Eliminates drywall bulge with no screw attachment to flange of stud
• Stud depth: 6 in.
• Made from 54 mil (16-gauge) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 50

Specifications

• ERP Part Number: SUBE6-R50
• UPC: 50707392029446
• GTIN: 50707392029446
• Feature 01: Tested to include stud-web strength and stiffness in the tabulated design values
• Feature 02: Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs
• Feature 03: Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.)
• Feature 04: Improves onsite safety by eliminating sharp-point screw perforations through the web in traditional clip attachments to wall-end stud webs
• Feature 05: Eliminates drywall bulge with no screw attachment to flange of stud
• Feature 06: Stud depth: 6 in.
• Feature 07: Made from 54 mil (16-gauge) steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Feature 09: Quantity: 50
• Assembled Depth - Imperial: 2.432
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.62015
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6.14525
• Assembled Width UOM - Imperial: in.
• Base Product ID: SUBE_Connector
• Base Product Name: SUBE
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Bridging and Bracing Connectors > Clip
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 11743054193958869354573964697159391373
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 40
• Shipping Weight: 720
• Short Product Name: 6" End Bridging Clip (Qty 50)
• Strongtie.com URL: https://www.strongtie.com/bridgingandbracingconnectors_coldformedsteelconstruction/sube_connector/p/sube
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Bridging and Bracing Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392029441
