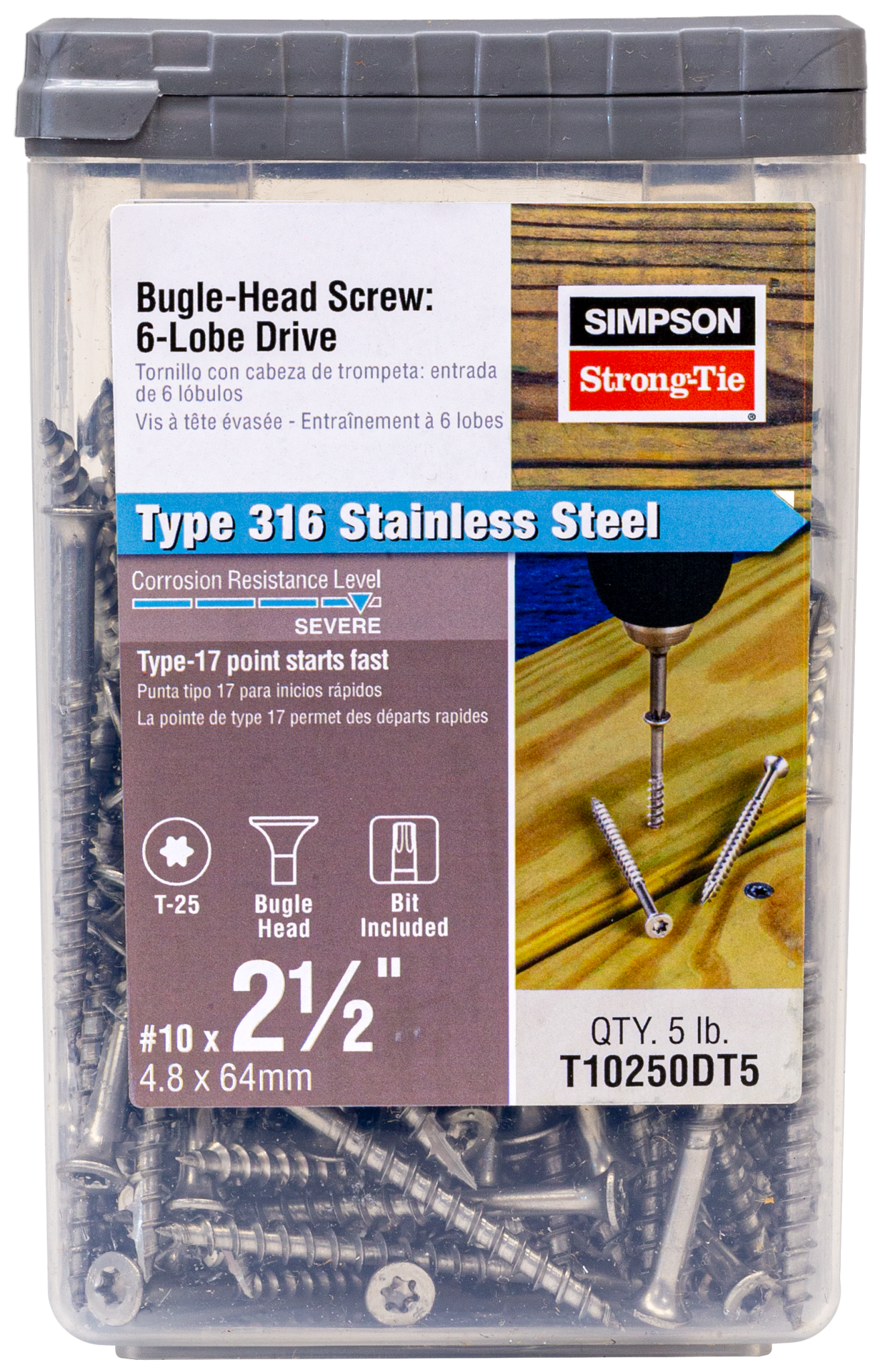

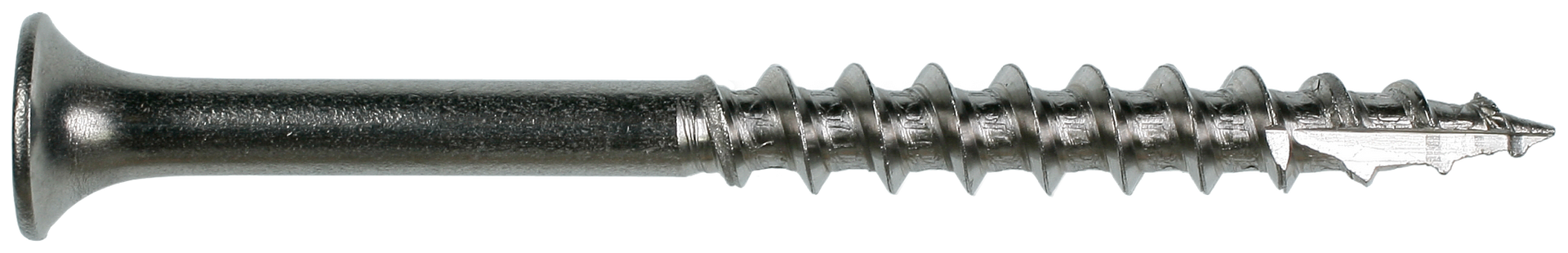

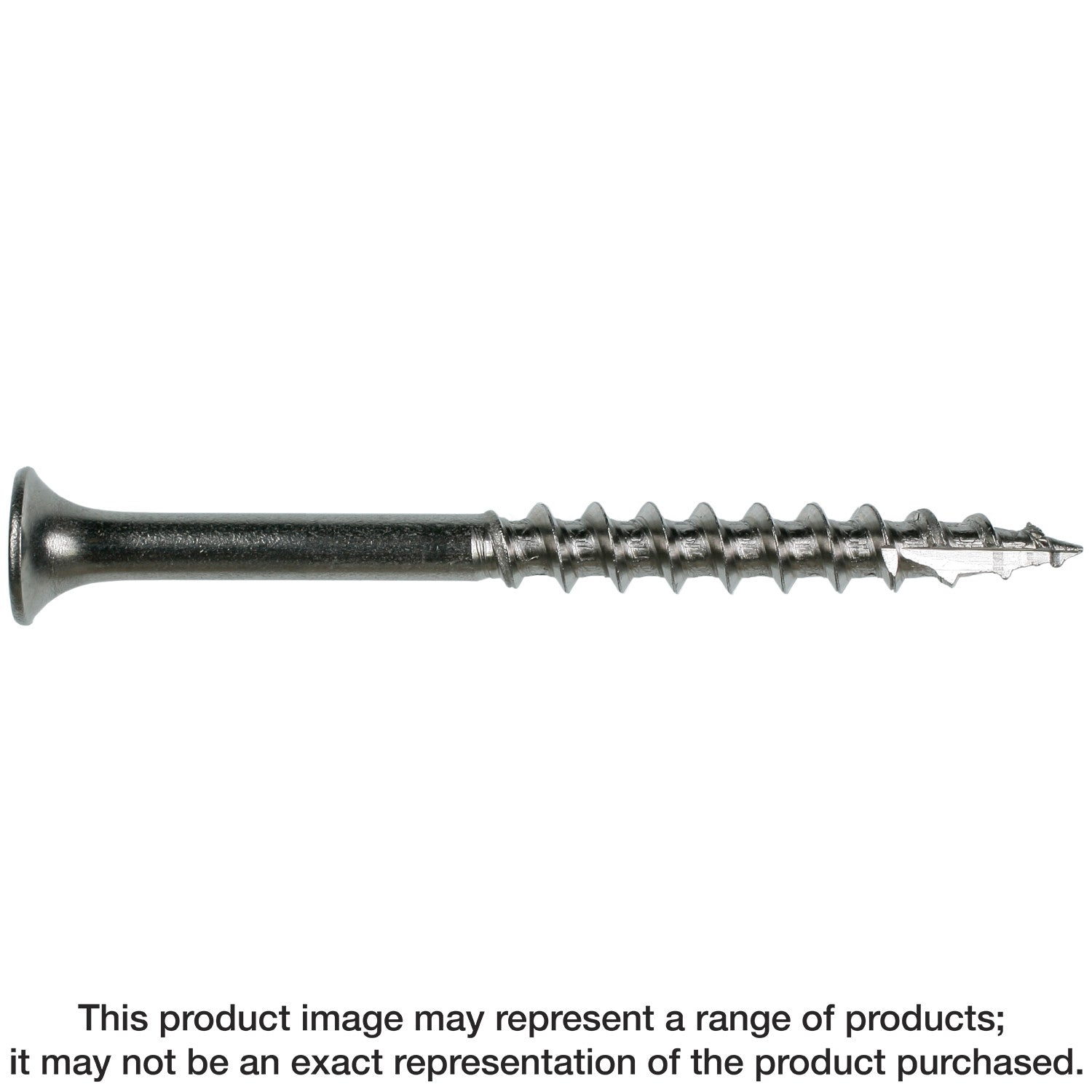

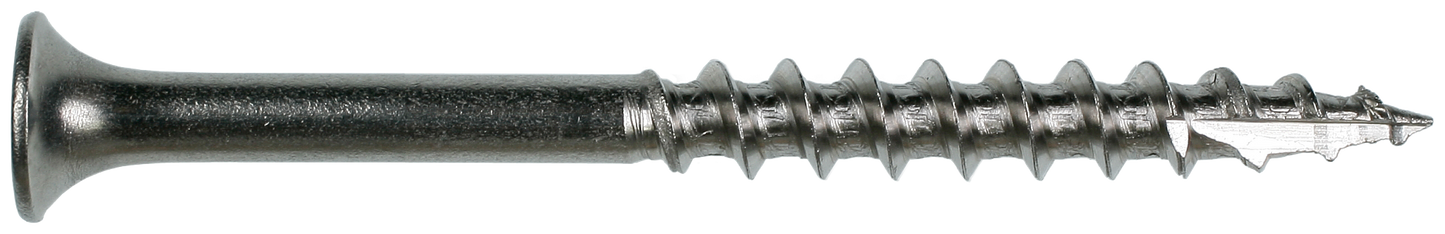

Simpson Strong-Tie T10250DT5 Bugle-Head Wood Screw, 6-Lobe Drive — #10 x 2-1/2-in. T25, Type 316 (5 lb.)

The Simpson Strong-Tie® stainless-steel Bugle-Head Wood screw provides superior corrosion resistance while fastening all types of wood decking, including cedar, redwood and preservative-treated woods (non-hardwood). The 6-lobe drive recess provides for a secure bit which reduces cam-outs and leads to longer bit life. The bugle-head feature engineered for flush countersinking yields beautiful fastening results for a more concealed, professional finish.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Type-17 point for fast starts
• Coarse threads on approximately 2/3 of the shank draw the decking and other material tightly to the framing
• 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• Predrilling recommended near board ends to prevent splitting
• Drive type: T25 6-lobe
• Driver bit included in each package (replacement bit model BIT25T-2-R2)
• Screw size: #10 x 2-1/2 inches
• Made from Type 316 stainless steel to provide severe-level corrosion resistance
• Quantity: 5 lb. per package

Application

• Dock and Boardwalk
• Fastening Wood-to-Wood
• Decks — Deck Boards Wood

Specifications

• ERP Part Number: T10250DT5
• UPC: 744039991501
• GTIN: 744039991501
• Feature 01: Type-17 point for fast starts
• Feature 02: Coarse threads on approximately 2/3 of the shank draw the decking and other material tightly to the framing
• Feature 03: 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• Feature 04: Predrilling recommended near board ends to prevent splitting
• Feature 05: Drive type: T25 6-lobe
• Feature 06: Driver bit included in each package (replacement bit model BIT25T-2-R2)
• Feature 07: Screw size: #10 x 2-1/2 inches
• Feature 08: Made from Type 316 stainless steel to provide severe-level corrosion resistance
• Feature 09: Quantity: 5 lb. per package
• Applications List: Dock and Boardwalk
• Applications List.1: Fastening Wood-to-Wood
• Applications List.2: Decks — Deck Boards Wood
• Appx Count Per Lb: 82
• Assembled Depth - Imperial: 0.340
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.340
• Assembled Width UOM - Imperial: in.
• Base Product ID: DBH6L_Screw
• Base Product Name: Bugle-Head Wood Screw — 6-Lobe Drive
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• EAN category: UC
• Finish: Type 316 Stainless Steel
• GUID: 151173316750409095089069666642741699713
• Head Diameter (in.): 0.340
• Head Type: Bugle Head
• Length (in.): 2 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.88
• Package Width UOM - Imperial: in.
• Packaging Quantity: 5 lb.
• Packaging Type: Tub
• Point Type: Type-17 Point
• Product Class: Hand-Drive Screw
• Product Includes: (1) T25 6-lobe driver bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 5.74
• Short Product Name: #10 X 2-1/2IN 316SS BUGLE T25 17PT 5LB
• Strongtie.com URL: https://www.strongtie.com/exteriorwoodscrews_screwsandnails/dbh6l_screw/p/bugle-head-wood-screw--6-lobe-drive
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Coarse Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10744039991508
• PAL Reference: 50744039991506
