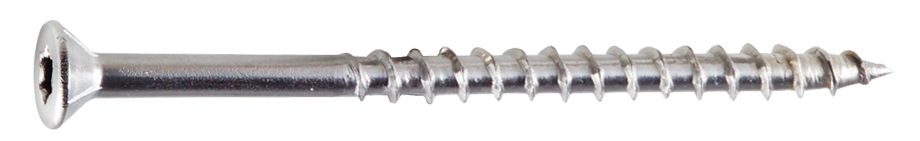

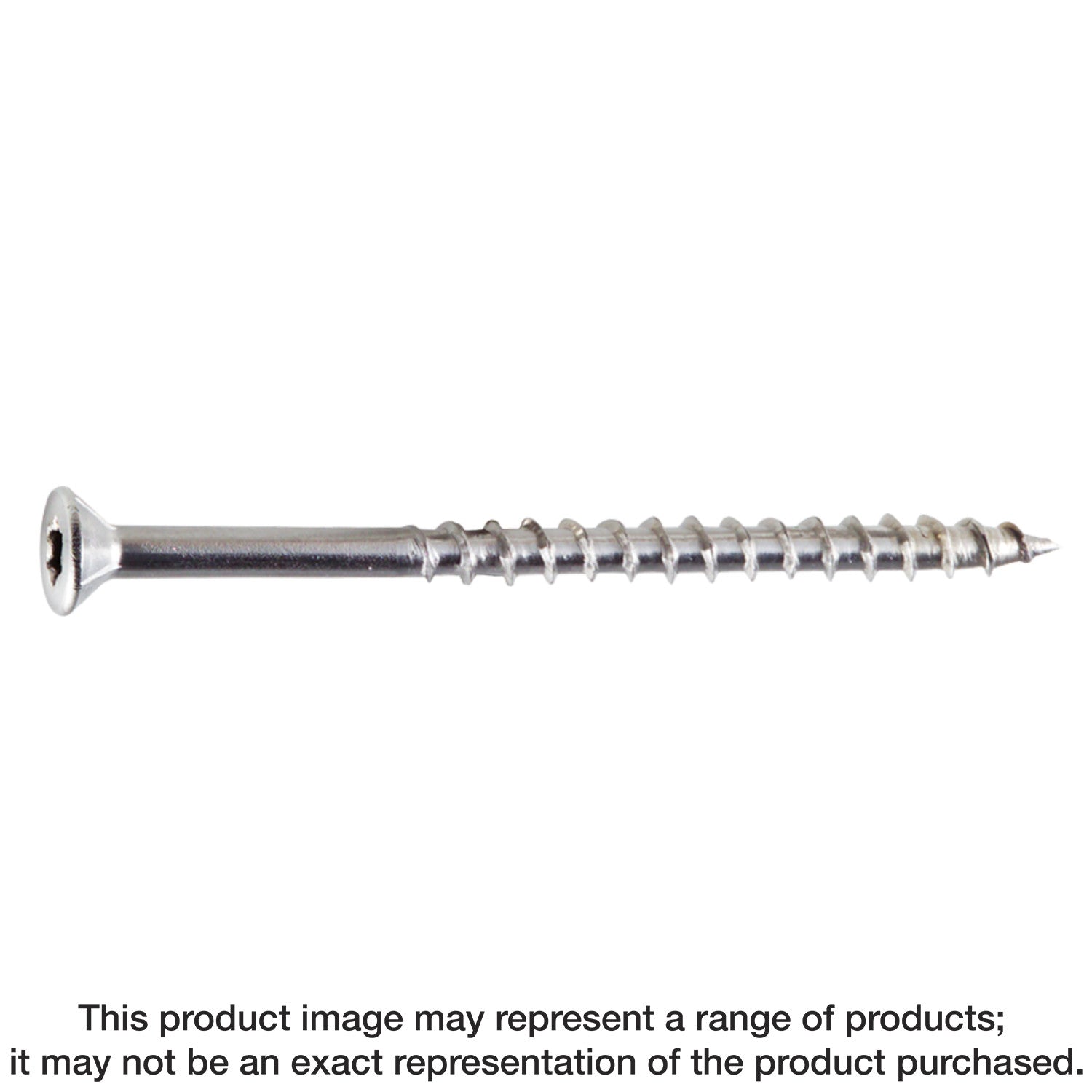

Simpson Strong-Tie T12450WPB Strong-Drive® DWP WOOD SS Screw — #12 x 4-1/2 in. T-27, Flat Head, Type 316 (750-Qty)

The Strong-Drive DWP Wood SS screw is a powerful, load-rated fastening solution for deck, dock and general exterior applications where extra corrosion protection and load specifications are required. The Strong-Drive DWP Wood SS flat-head screws are structural fasteners that have been tested in accordance with ICC-ES acceptance criteria AC233 and are load rated for shear, pull-through and withdrawal resistance. With its specially designed sharp-point and unique box-threads, the DWP Wood SS is a great solution for exterior structural connections, such as on docks, boardwalks and decks near water or where they will be exposed to high or severe corrosion.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flat head; also available in trim-head version
• Unique "box" thread design with raised-ridge technology greatly reduces driving torque, which allows you to drive more screws on a single battery charge
• Specially designed sharp point penetrates hard wood products with ease
• 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• (2) T27 6-lobe driver bits included (BIT27T-2-R2)
• Length: 4-1/2 in.
• Type 316 stainless steel provides severe-level corrosion resistance
• Quantity: 750

Application

• Decks — Deck Boards Wood
• Fastening Wood-to-Wood
• Marine
• Dock and Boardwalk

Specifications

• ERP Part Number: T12450WPB
• UPC: 707392641902
• GTIN: 707392641902
• Feature 01: Flat head; also available in trim-head version
• Feature 02: Unique "box" thread design with raised-ridge technology greatly reduces driving torque, which allows you to drive more screws on a single battery charge
• Feature 03: Specially designed sharp point penetrates hard wood products with ease
• Feature 04: 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• Feature 05: (2) T27 6-lobe driver bits included (BIT27T-2-R2)
• Feature 06: Length: 4-1/2 in.
• Feature 07: Type 316 stainless steel provides severe-level corrosion resistance
• Feature 08: Quantity: 750
• Applications List: Decks — Deck Boards Wood
• Applications List.1: Fastening Wood-to-Wood
• Applications List.2: Marine
• Applications List.3: Dock and Boardwalk
• Appx Count Per Lb: 32
• Assembled Depth - Imperial: 0.435
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.435
• Assembled Width UOM - Imperial: in.
• Base Product ID: DWP-SD_Screw
• Base Product Name: Strong-Drive® DWP WOOD SS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T27 6-Lobe
• Finish: Type 316 Stainless Steel
• GUID: 261889508820434166537136527779818614437
• Head Diameter (in.): 0.435
• Head Type: Flat Head
• Length (in.): 4 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.70
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 750
• Point Type: Sharp Point
• Product Class: Hand-Drive Screw
• Product Includes: (2) T27 6-lobe driver bits
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #12
• Shipping Weight: 23
• Short Product Name: DWP #12 4-1/2IN 316SS FLAT T27 750CT
• Strongtie.com URL: https://www.strongtie.com/strongdrive_exteriorwoodscrews/dwp-sd_screw/p/strong-drive-dwp-wood-ss-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Box Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392641907
