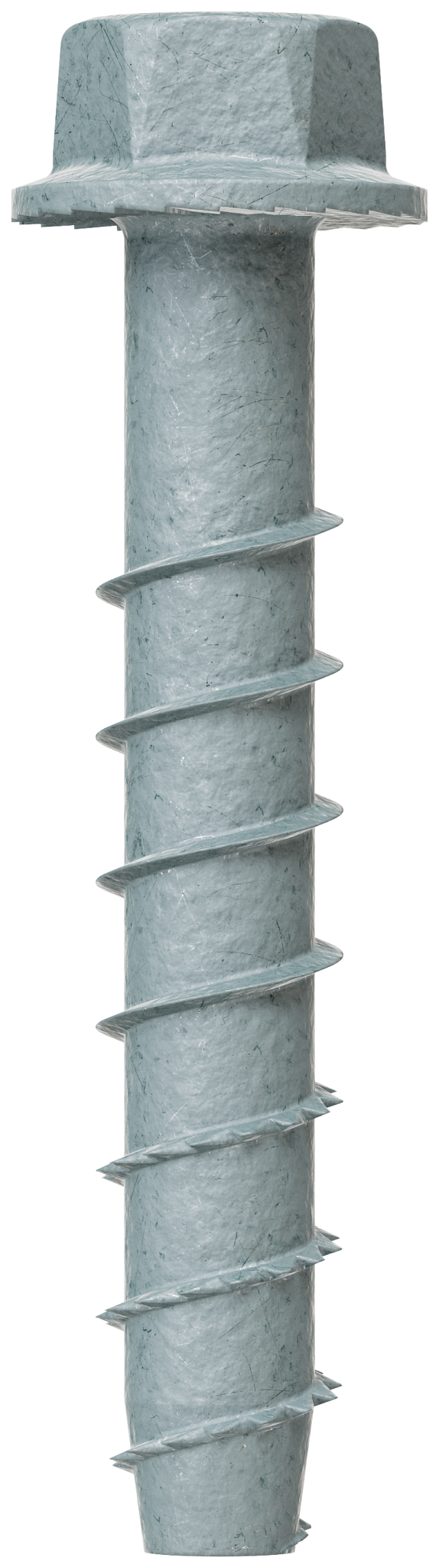

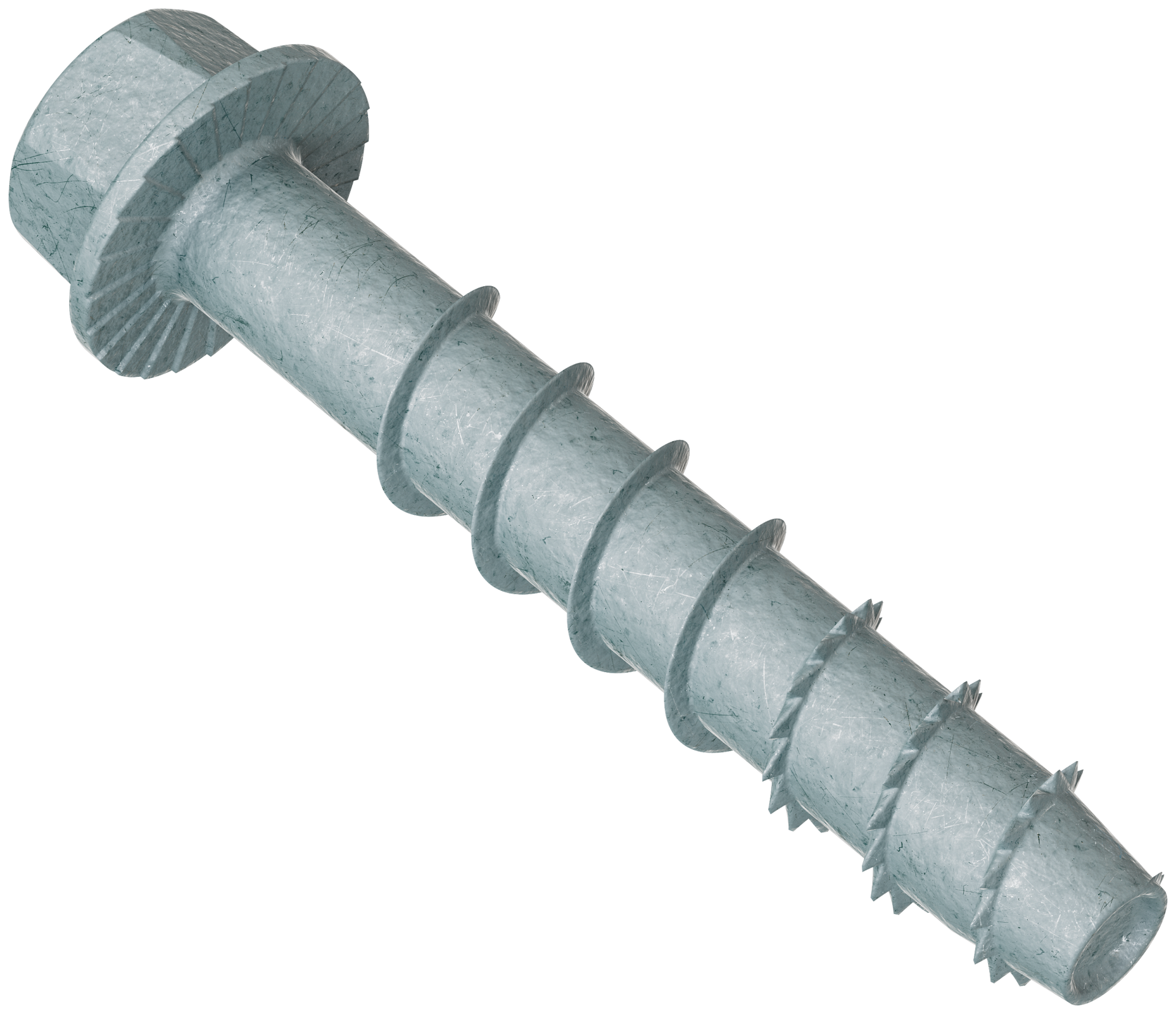

Simpson Strong-Tie THD37212HMG Titen HD® 3/8 in. x 2-1/2 in. Mechanically Galvanized Heavy-Duty Screw Anchor (50-Qty)

The Simpson Strong-Tie® Titen HD® heavy-duty screw anchor is a mechanically galvanized high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Its proprietary heat treatment and ASTM B695 Class 65 mechanically galvanized coating make it ideal for both interior and exterior anchoring applications. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove for use in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

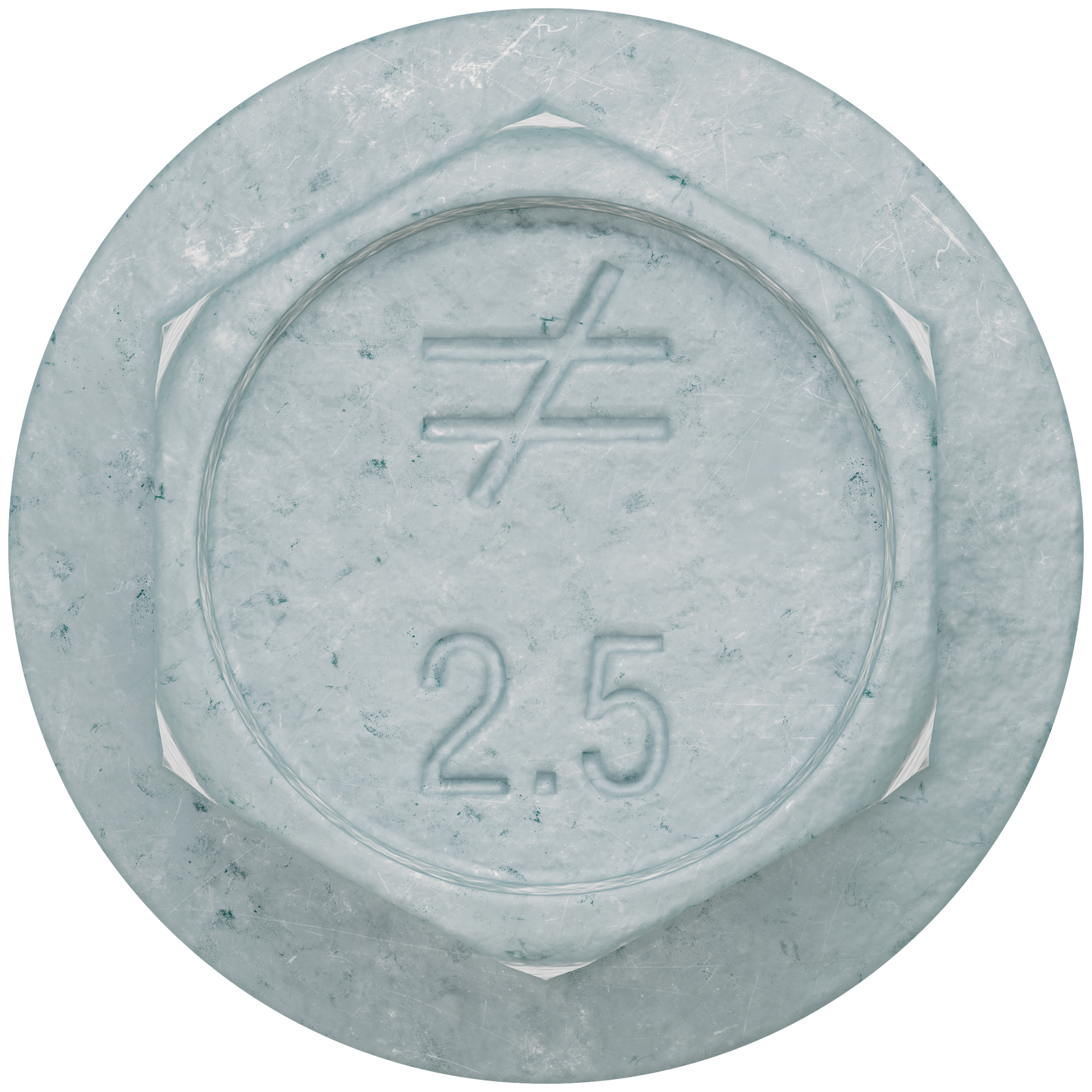

• Head-stamped for easy identification
• Serrated teeth on the tip facilitates cutting and reduces installation torque
• Thread design undercuts to efficiently transfer the load to the base material
• Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
• Hex washer head requires no separate washer, unless required by code
• Qualified for exterior applications
• Size: 3/8 in. x 2-1/2 in.
• Quantity: 50 per package

Specifications

• ERP Part Number: THD37212HMG
• UPC: 707392296928
• GTIN: 707392296928
• Feature 01: Head-stamped for easy identification
• Feature 02: Serrated teeth on the tip facilitates cutting and reduces installation torque
• Feature 03: Thread design undercuts to efficiently transfer the load to the base material
• Feature 04: Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
• Feature 05: Hex washer head requires no separate washer, unless required by code
• Feature 06: Qualified for exterior applications
• Feature 07: Size: 3/8 in. x 2-1/2 in.
• Feature 08: Quantity: 50 per package
• Install With: No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
• Assembled Depth - Imperial: 0.8
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.9525
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.8
• Assembled Width UOM - Imperial: in.
• Base Product ID: THD-MG_Anchor
• Base Product Name: Titen HD® Mechanically Galvanized
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
• Coating: Mechanically Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 3/8
• Display Unit/Measure: EA
• Drill Bit Diameter (in.): 3/8
• Finish: Mechanically Galvanized
• GUID: 4793009387639790342611008134103177630
• Length (in.): 2 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 7.87
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.54
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Screw Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Recommended Fixture Hole Size (in.): 1/2 to 9/16
• Shipping Weight: 5.75
• Short Product Name: TITEN HD MG 3/8" x 2-1/2" PAK 50
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd-mg_anchor/p/titen-hd-mechanically-galvanized
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 2
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Wrench Size (in.): 9/16
• CAR Reference: 10707392296925
• PAL Reference: 50707392296923
