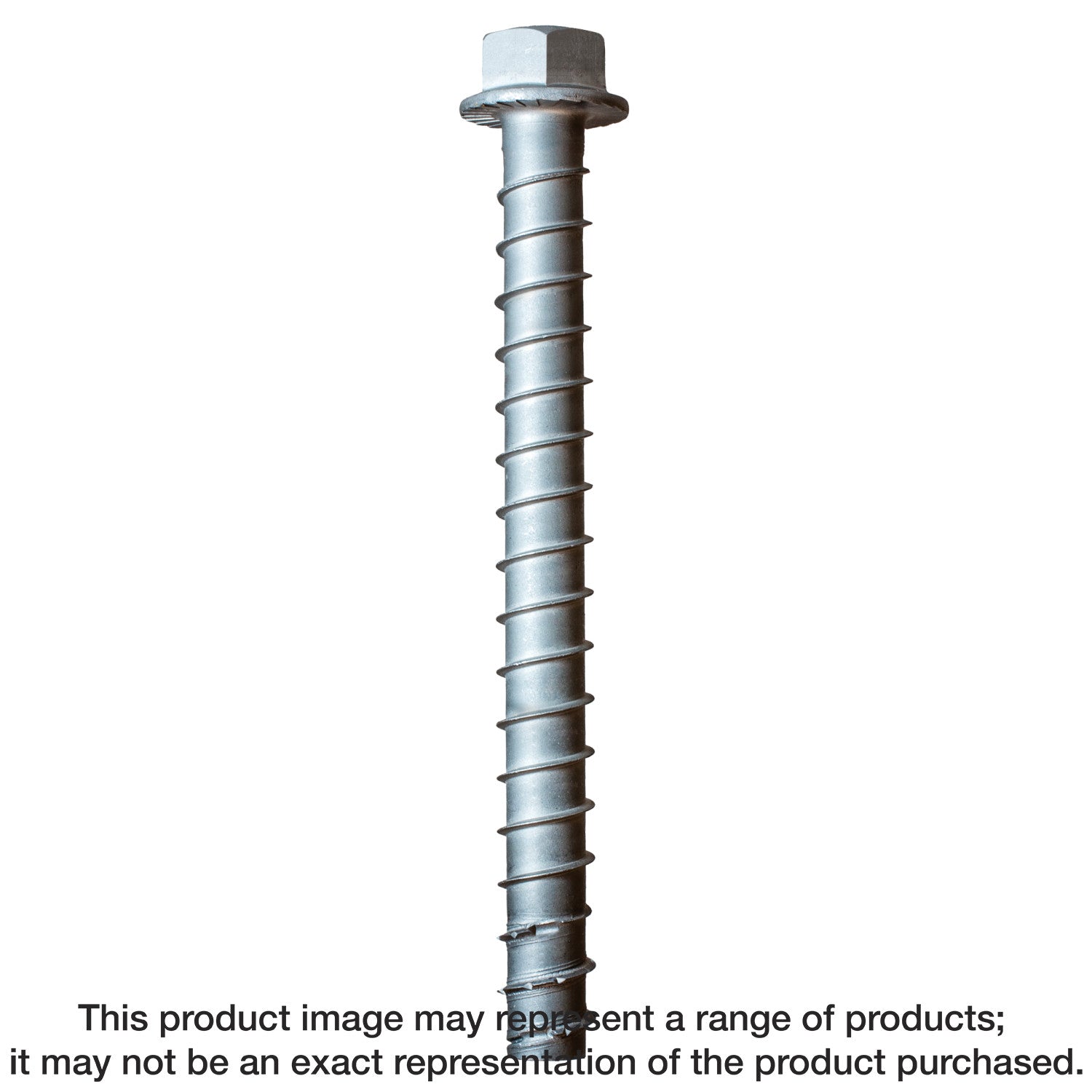

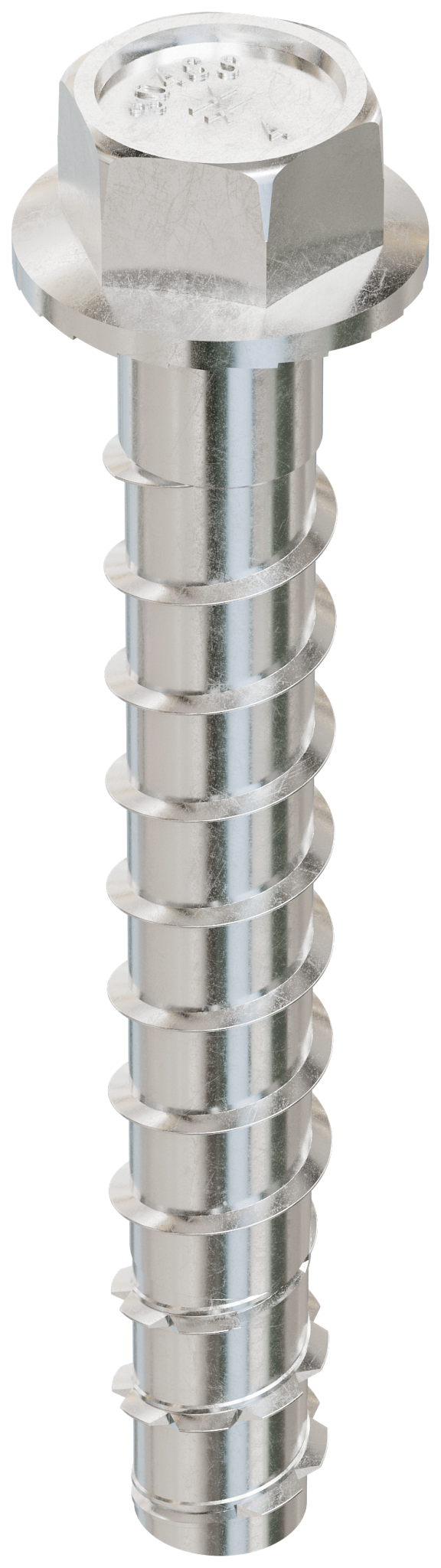

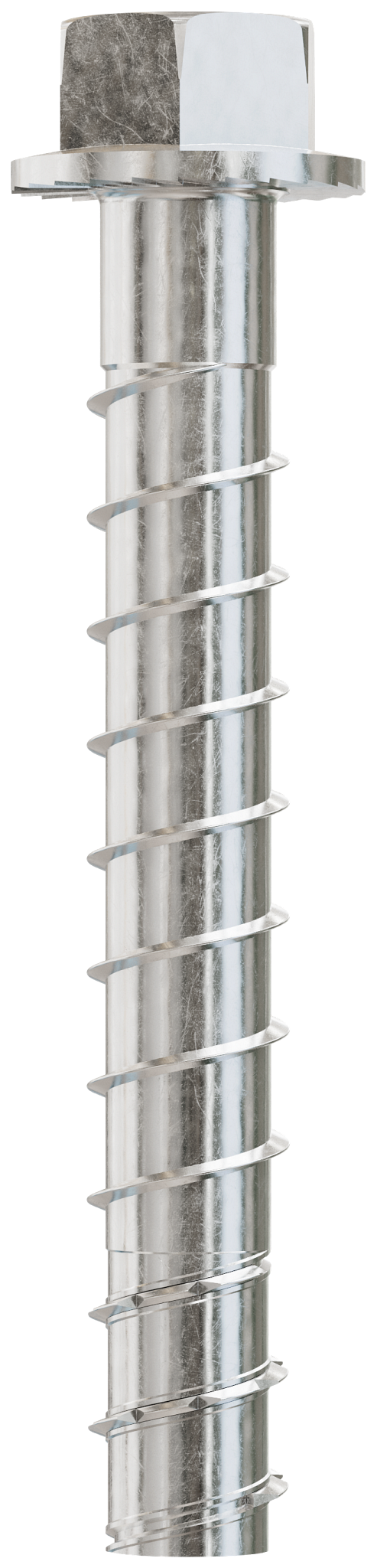

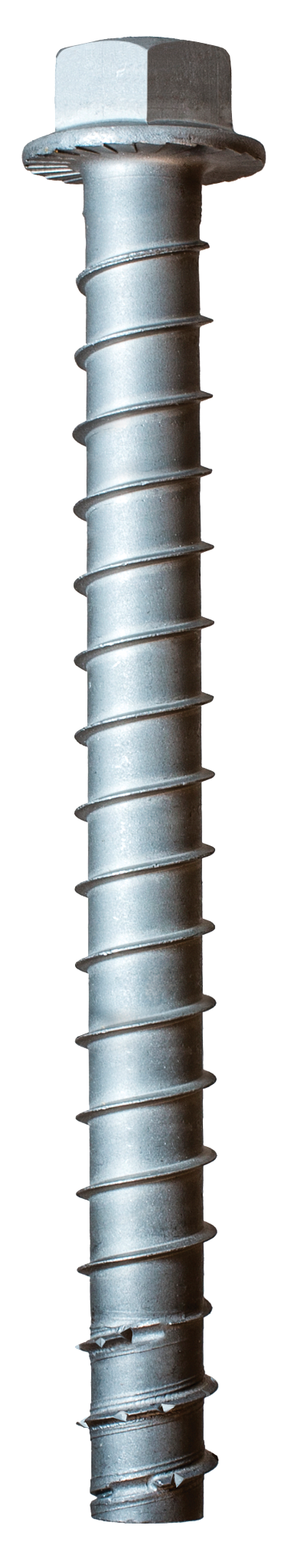

Simpson Strong-Tie THD50400H4SS Titen HD® 1/2 in. x 4 in. Type 304 Stainless Steel Heavy-Duty Screw Anchor (20-Qty) (Pack of 300)

The Titen HD stainless-steel screw anchor for concrete and masonry sets the standard for when the job calls for installation in multiple types of environments. It is the ultimate choice to provide fast and efficient installation, combined with long-lasting corrosion resistance for an unsurpassed peace-of-mind. The THDSS is a state-of-the-art screw anchor solution that combines the corrosion resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads. Type 316 is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. Type 304 is a cost-effective solution for less extreme applications where the environment may be wet, moist or damp.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Qualified for static and seismic loading conditions
• Thread design undercuts to efficiently transfer the load to the base material
• No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits

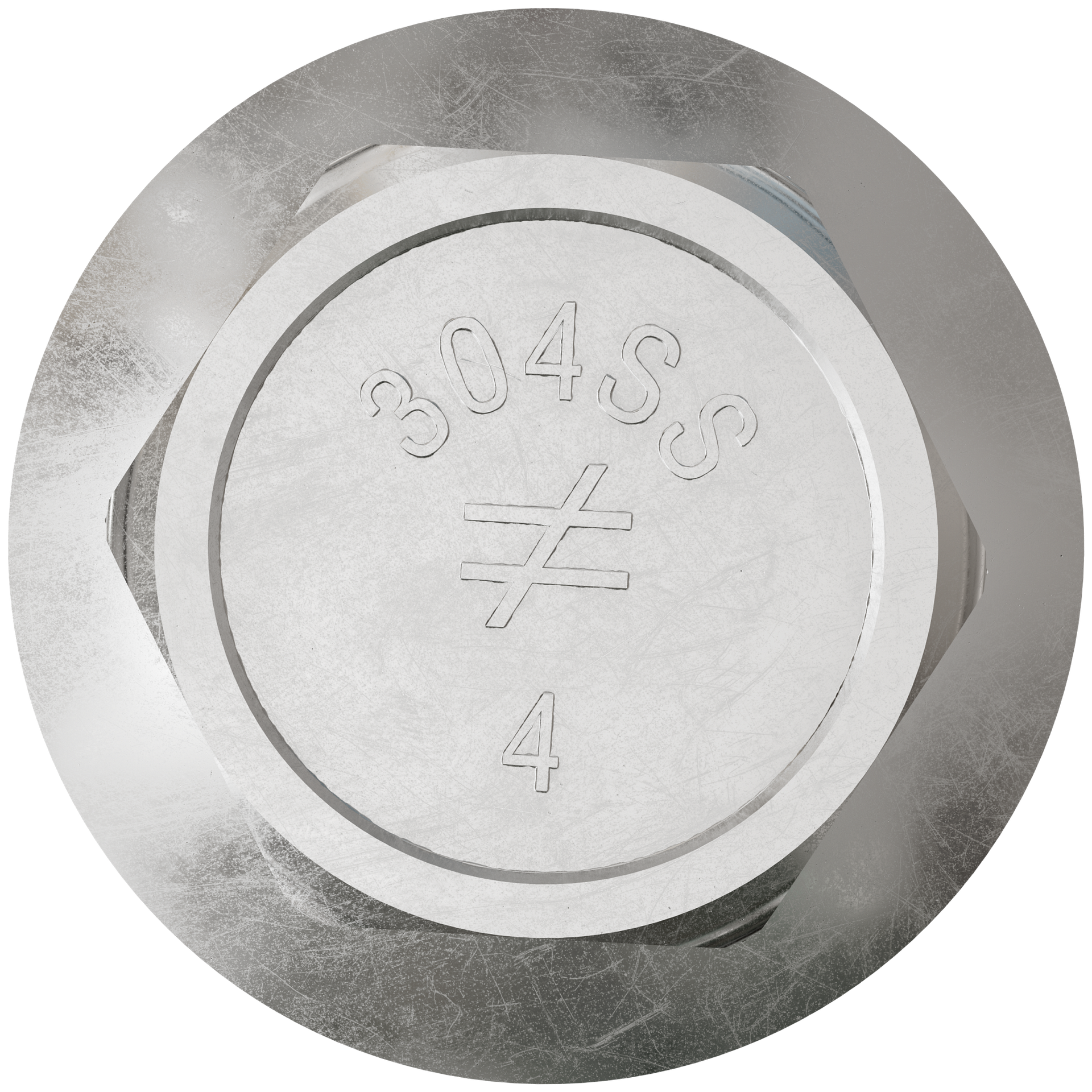

• Hex-washer head requires no separate washer and provides a clean installed appearance
• The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
• Size: 1/2 in. x 4 in.
• Made from Type 304 stainless steel
• Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
• Quantity: 20

Specifications

• ERP Part Number: THD50400H4SS
• UPC: 50707392975057
• GTIN: 50707392975057
• Feature 01: Qualified for static and seismic loading conditions
• Feature 02: Thread design undercuts to efficiently transfer the load to the base material
• Feature 03: No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
• Feature 04: Hex-washer head requires no separate washer and provides a clean installed appearance
• Feature 05: The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
• Feature 06: Size: 1/2 in. x 4 in.
• Feature 07: Made from Type 304 stainless steel
• Feature 08: Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
• Feature 09: Quantity: 20
• Assembled Depth - Imperial: 1.07
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.52
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.07
• Assembled Width UOM - Imperial: in.
• Base Product ID: THDSS_Anchor
• Base Product Name: Stainless-Steel Titen HD®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
• Country of Origin: CN
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 203464941912442355971932176782206112813
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Screw Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 300
• Shipping Weight: 1824
• Short Product Name: TITEN HD 1/2 X 4 304SS
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thdss_anchor/p/stainless-steel-titen-hd
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• US Patents: 8,747,042
• US Patents.1: 9,517,519
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392975059
• PAC Reference: 707392163428
