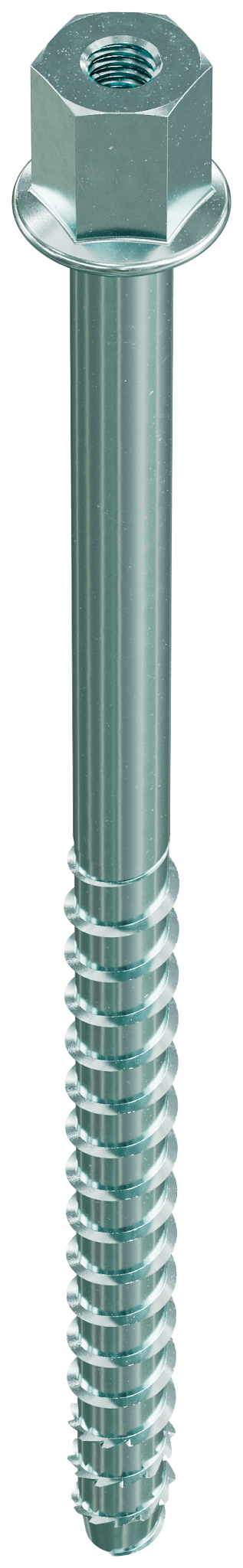

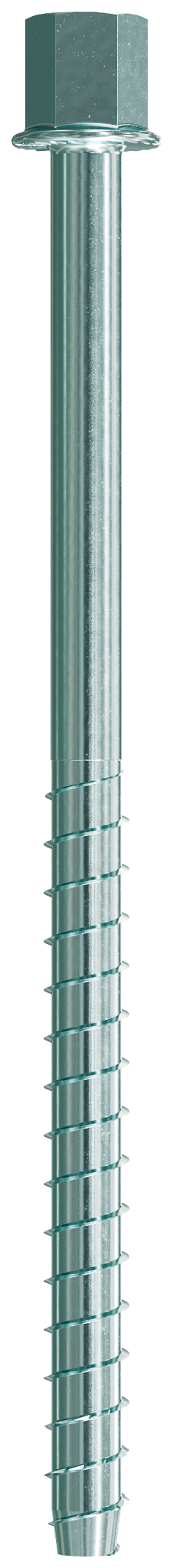

Simpson Strong-Tie THD5093437RC Titen HD® 1/2 in. x 9-3/4 in. Rod Coupler for 3/8 in. Rod (20-Qty) (Pack of 144)

The Simpson Strong-Tie® Titen HD Rod Coupler is designed to be used in conjunction with a single or multi-story rod tiedown system. This anchor provides a fast and simple way to attach threaded rod to a concrete stem wall or thickened slab footing. Unlike adhesive anchors, the installation requires no special tools, cure time or secondary setting process; just drill a hole and drive the anchor.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Code listed in ESR-2713 for wind and seismic loading
• The serrated cutting teeth and patented thread design enable the Titen HD rod coupler to be installed quickly and easily
• Less installation time translates to lower installed cost
• The specialized heat-treating process creates tip hardness to facilitate cutting while the body remains ductile
• No special setting tools are required; the Titen HD rod coupler installs with regular or hammer drill, ANSI size bits and standard sockets
• Zinc-plated carbon steel anchor; use in dry interior environments only
• Size: 1/2 x 9-3/4 inches
• Rod diameter: 3/8 inch

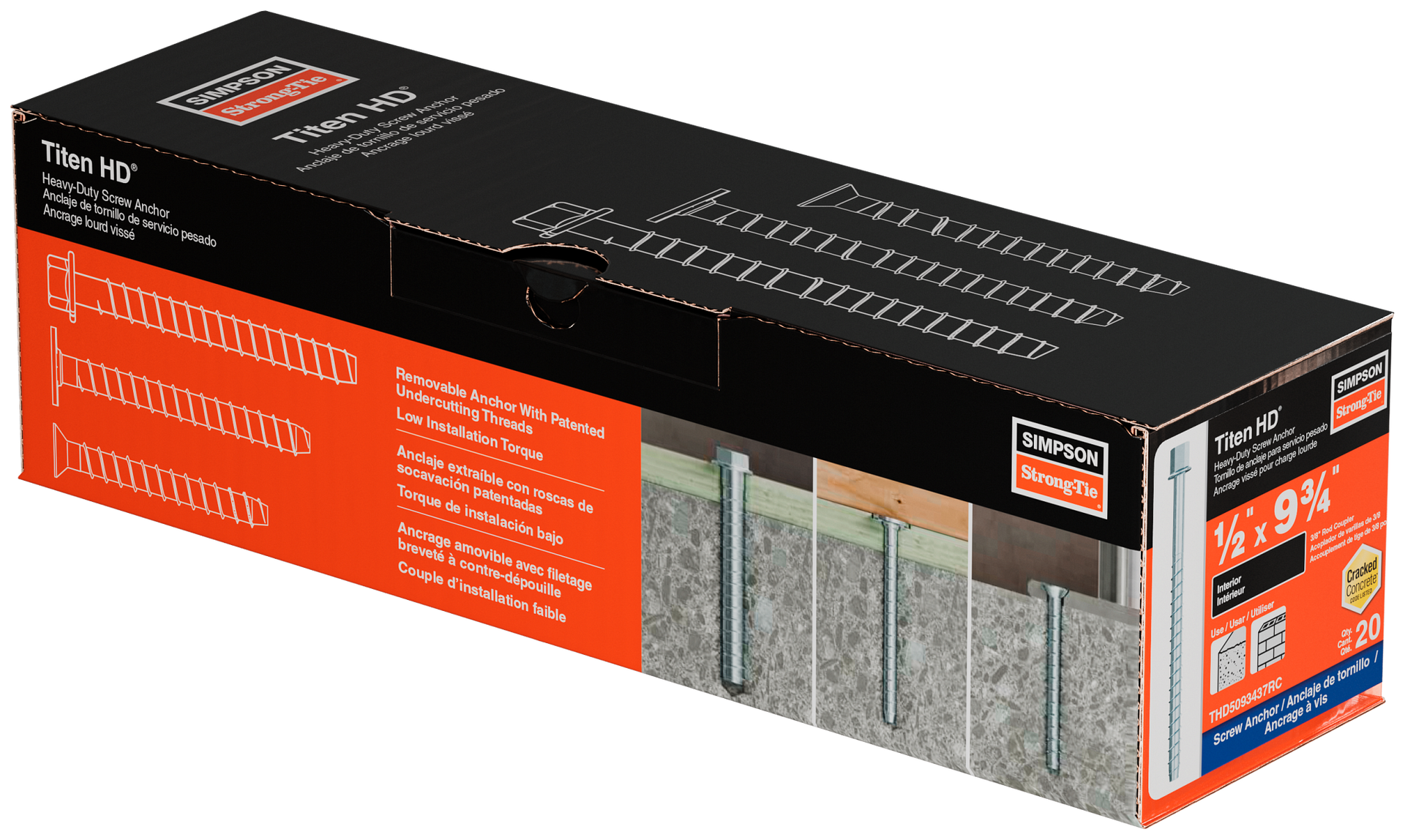

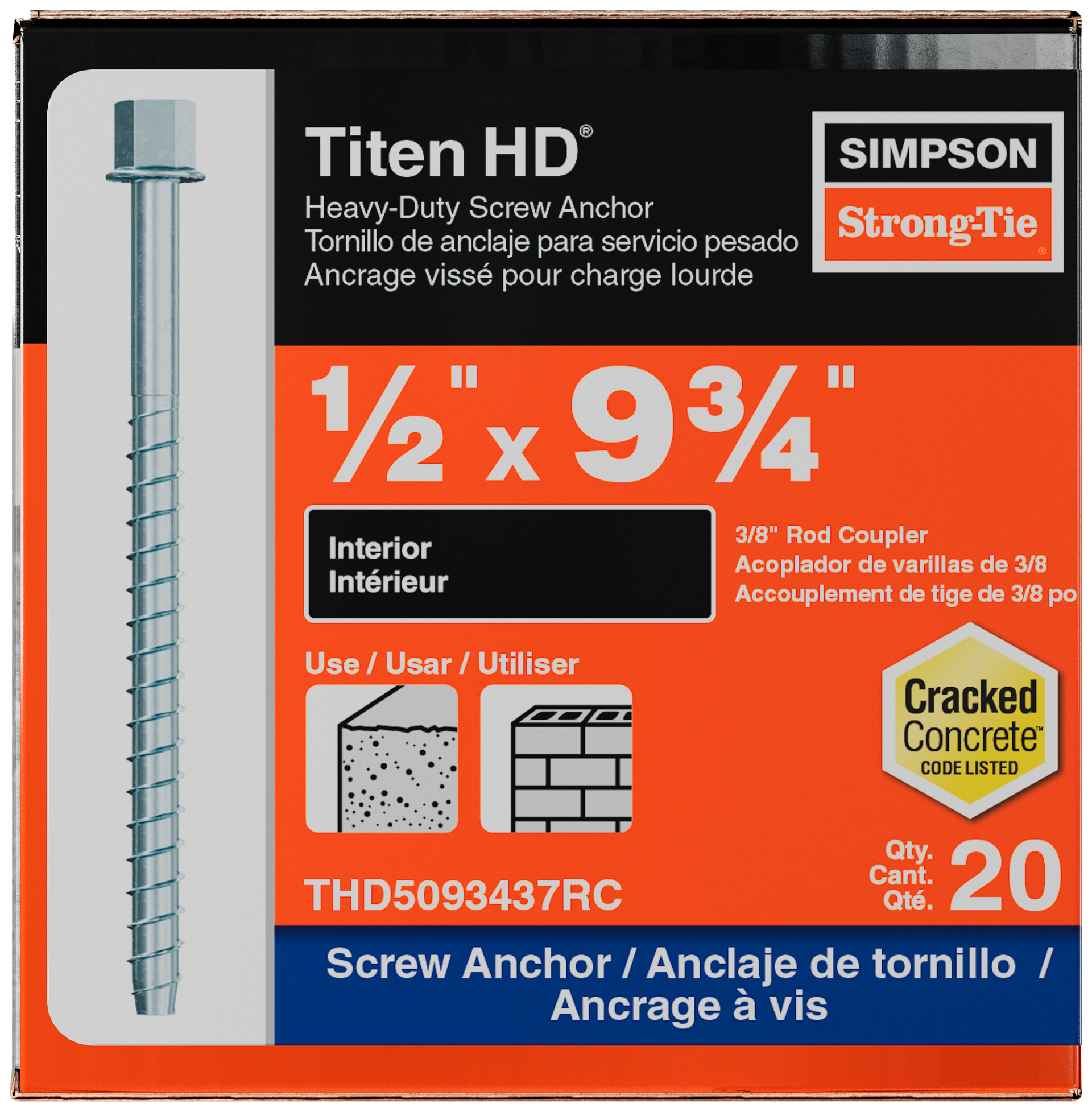

• Quantity: 20 per package

Specifications

• ERP Part Number: THD5093437RC
• UPC: 50707392029842
• GTIN: 50707392029842
• Feature 01: Code listed in ESR-2713 for wind and seismic loading
• Feature 02: The serrated cutting teeth and patented thread design enable the Titen HD rod coupler to be installed quickly and easily
• Feature 03: Less installation time translates to lower installed cost
• Feature 04: The specialized heat-treating process creates tip hardness to facilitate cutting while the body remains ductile
• Feature 05: No special setting tools are required; the Titen HD rod coupler installs with regular or hammer drill, ANSI size bits and standard sockets
• Feature 06: Zinc-plated carbon steel anchor; use in dry interior environments only
• Feature 07: Size: 1/2 x 9-3/4 inches
• Feature 08: Rod diameter: 3/8 inch
• Feature 09: Quantity: 20 per package
• Assembled Depth - Imperial: 1.07
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.07
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.66
• Assembled Width UOM - Imperial: in.
• Base Product ID: THD-RC_Anchor
• Base Product Name: Titen HD® Rod Coupler
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Rod Coupler
• Country of Origin: CN
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 243720826222846636929298453189783742915
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Product Class: Rod Coupler
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 144
• Shipping Weight: 2007.36
• Short Product Name: TITEN HD RC 1/2 X 9 3/4, 3/8 ROD
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd-rc_anchor/p/titen-hd-rod-coupler
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392029844
• PAC Reference: 707392039846
