Description

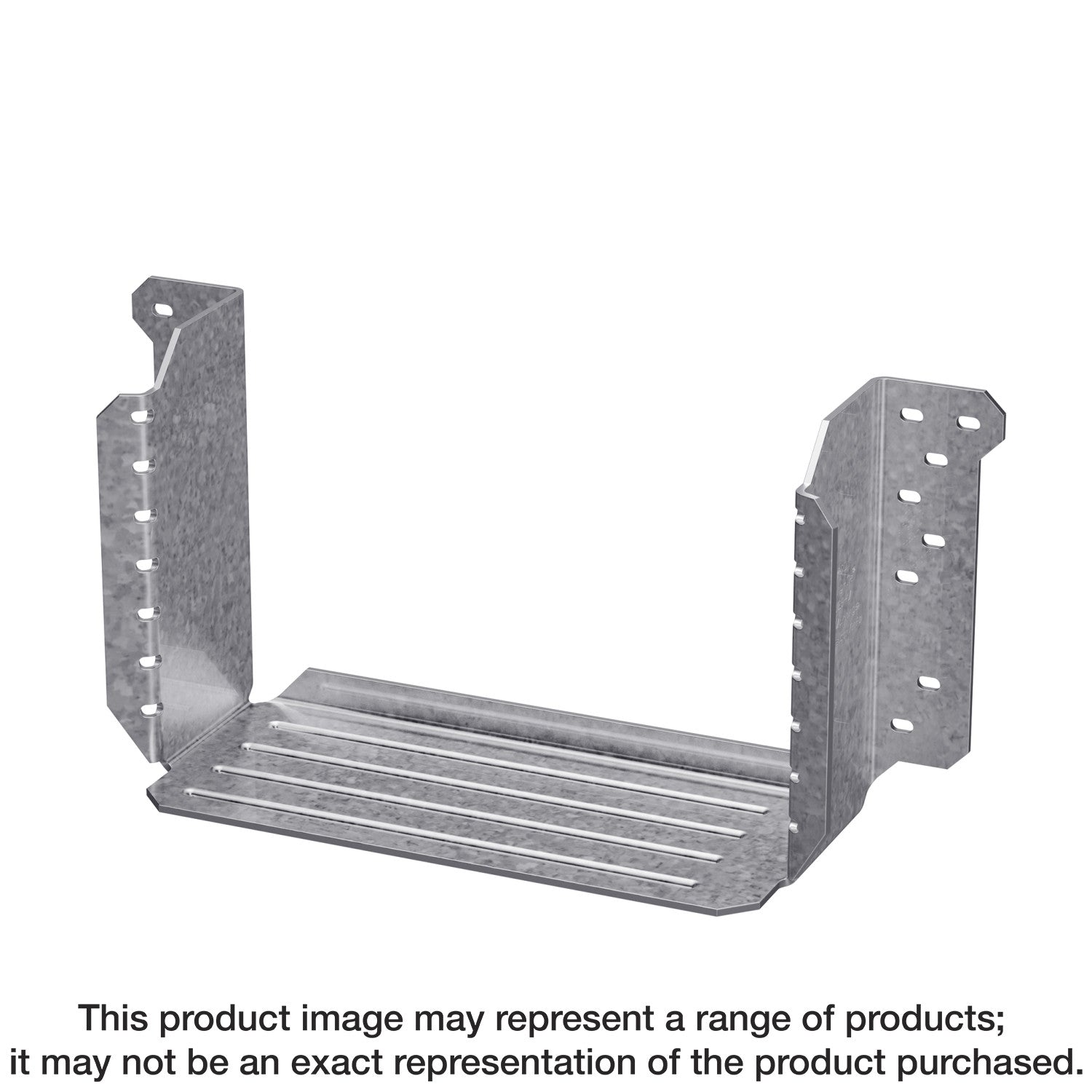

Simpson Strong-Tie THJU26-W THJU 8-1/8 in. Galvanized Truss Hip/Jack Hanger
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- The THJU hip/jack hanger offers the most flexibility and ease of installation without sacrificing performance
- U-shaped hanger works for right- and left-hand hips and can be ordered to fit a range of hip skews (up to 67 1/2°) as well as various single and 2-ply hip/jack combinations
- Can be installed before or after the hip and jack
- The wide seat of THJU26-W accommodates a 2-ply hip and 2-ply jack combination with a 45° maximum hip skew, or a standard single-ply hip/jack configuration with a maximum 67-1/2° hip skew
- Engineer trusted and contractor proven — you can trust the quality of Simpson Strong-Tie
- Seat width: 8-1/8 in.
- Height: 5-3/8 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- ERP Part Number: THJU26-W
- UPC: 707392630104
- GTIN: 707392630104
- Feature 01: The THJU hip/jack hanger offers the most flexibility and ease of installation without sacrificing performance
- Feature 02: U-shaped hanger works for right- and left-hand hips and can be ordered to fit a range of hip skews (up to 67 1/2°) as well as various single and 2-ply hip/jack combinations
- Feature 03: Can be installed before or after the hip and jack
- Feature 04: The wide seat of THJU26-W accommodates a 2-ply hip and 2-ply jack combination with a 45° maximum hip skew, or a standard single-ply hip/jack configuration with a maximum 67-1/2° hip skew
- Feature 05: Engineer trusted and contractor proven — you can trust the quality of Simpson Strong-Tie
- Feature 06: Seat width: 8-1/8 in.
- Feature 07: Height: 5-3/8 in.
- Feature 08: Made from 12-gauge steel
- Feature 09: Galvanized (G90) for extra corrosion resistance
- Install With: Install with 10d common nails
- Assembled Depth - Imperial: 3.5365
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 5.573
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 11.323
- Assembled Width UOM - Imperial: in.
- Base Product ID: THJU_Hanger
- Base Product Name: THJU
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Truss Hangers > Hanger
- Coating: Zinc Galvanized, G90
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- EAN category: UC
- Finish: Zinc Galvanized, G90
- Gauge: 12
- GUID: 198150386384359116429923051008087634609
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Packaging Quantity: 1
- Packaging Type: Unpacked
- Product Class: Hanger
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 2.2
- Short Product Name: TRUSS HIP/JACK HANGER
- Strongtie.com URL: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/thju_hanger/p/thju
- Subcategory: Wood Construction Connectors
- Subcategory 2: Truss Hangers
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 10707392630101
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
