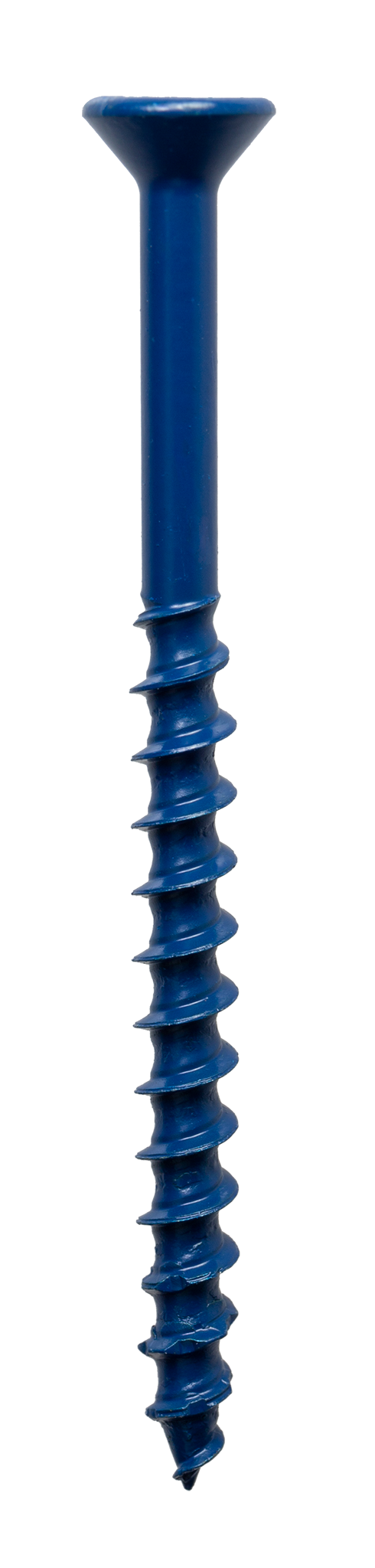

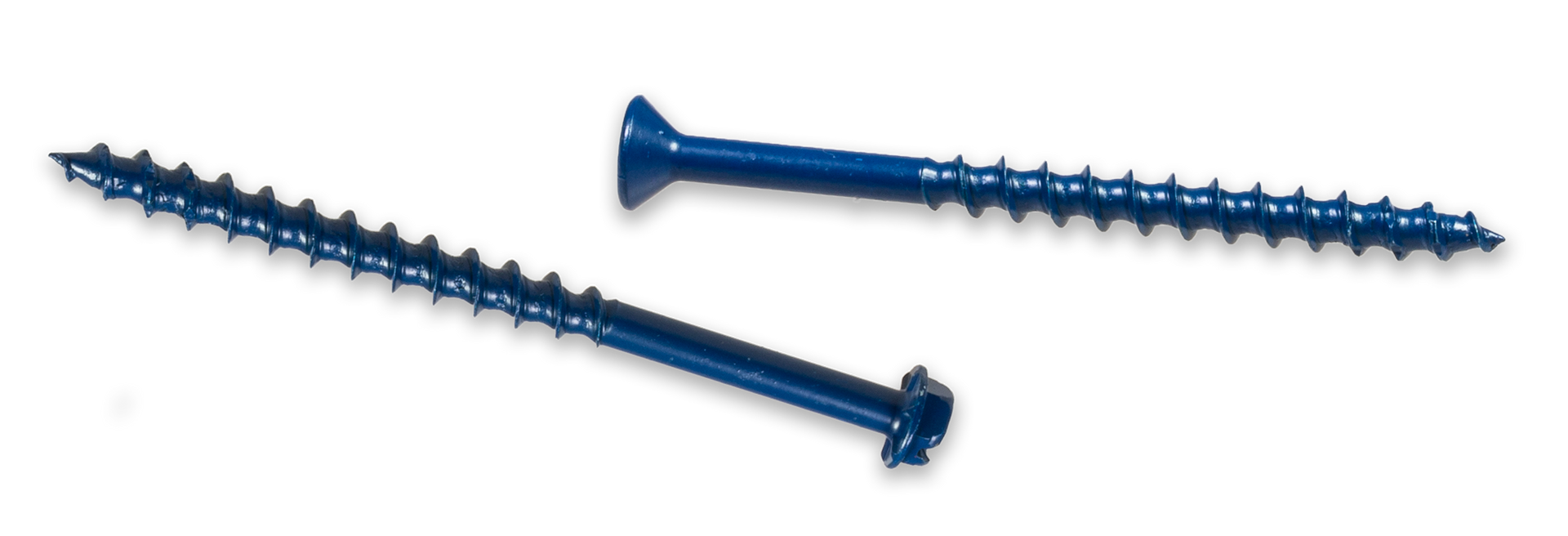

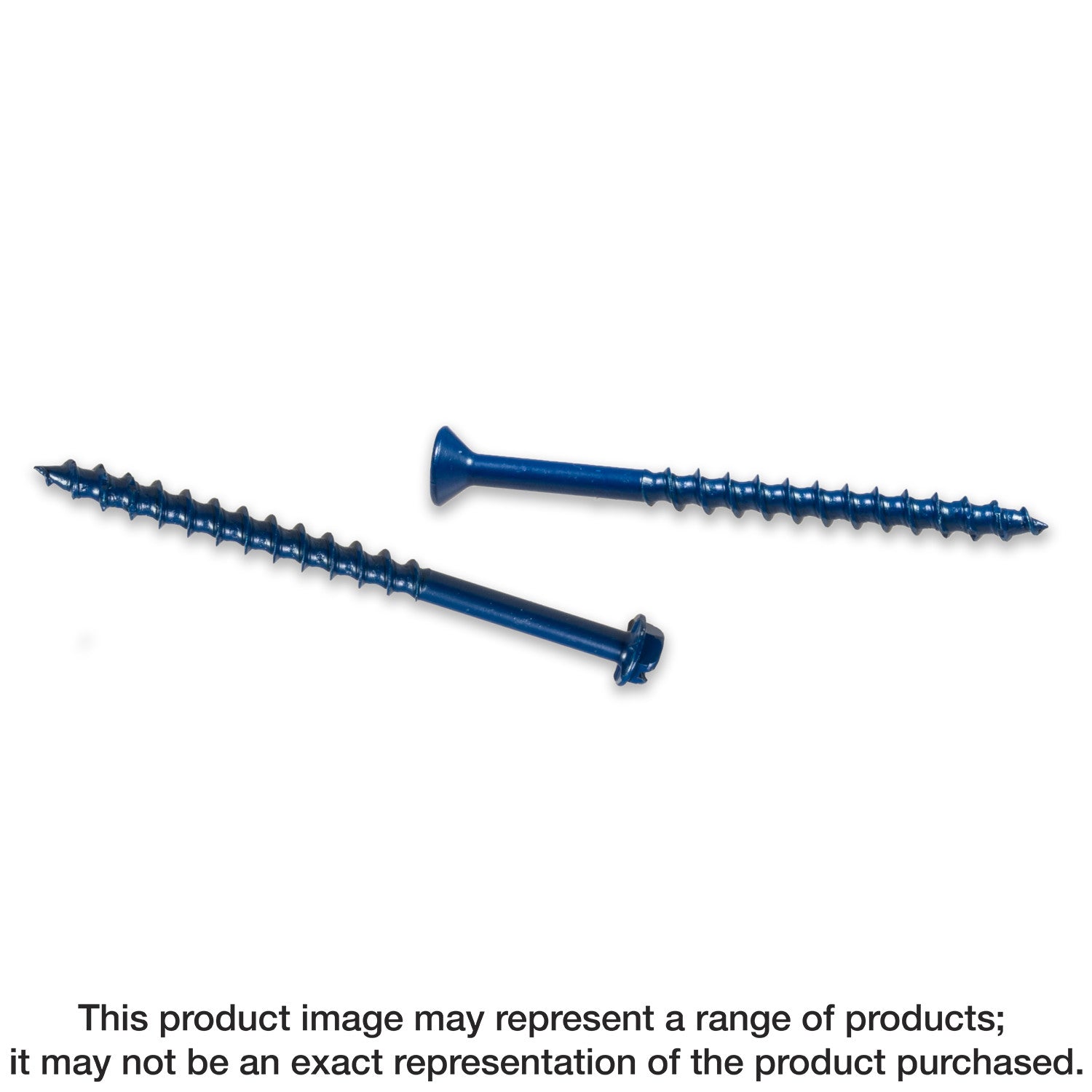

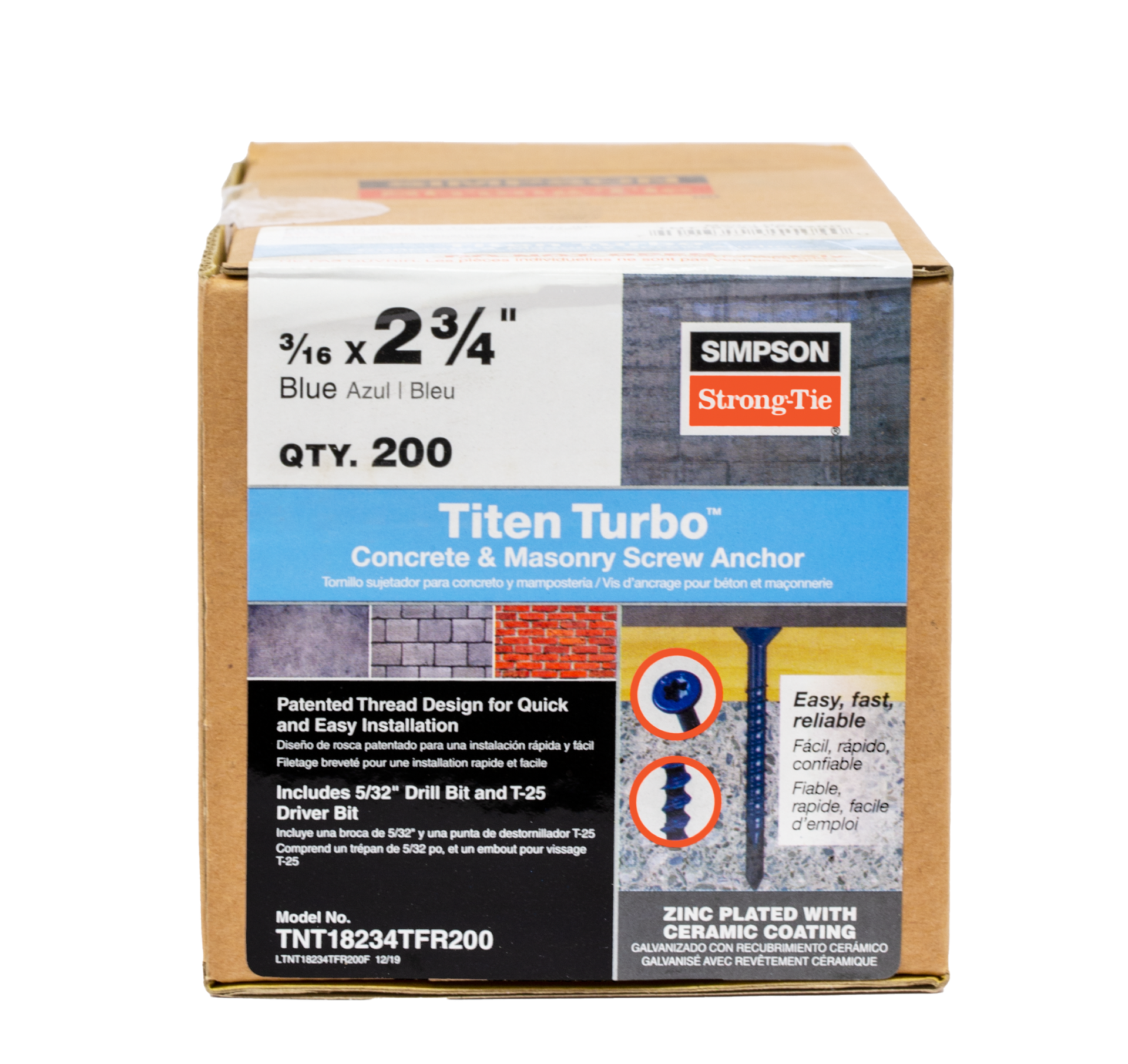

Simpson Strong-Tie TNT18234TFR200 Titen Turbo™ — 3/16 in. x 2-3/4 in. 6-Lobe Flat-Head Concrete and Masonry Screw, Blue (200-Qty) (Pack of 558)

The Titen Turbo screw anchor is fast and easy to install, and incredibly reliable in its performance. The secret behind the performance of the Titen Turbo lies in a thread design that lowers driving torque while providing superior holding power. The revolutionary Torque Reduction Channel between the threads gives drilling dust a place to go, thereby significantly reducing torque-related issues like binding, stripping and snapping. This screw anchor delivers consistently trouble-free installation and fastening strength you can depend on.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
• Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
• Serrated screw point for easier starts when fastening wood
• Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Zinc plated with a baked-on ceramic coating
• Designed for installation with a cordless drill or impact driver
• Use in dry interior environments only
• Drill bit diameter: 5/32 in.
• 6-lobe flat head style for a smooth installed profile (T25 driver bit included)
• Quantity: 200

Specifications

• ERP Part Number: TNT18234TFR200
• UPC: 50707392011045
• GTIN: 50707392011045
• Feature 01: Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole (patent pending)
• Feature 02: Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
• Feature 03: Serrated screw point for easier starts when fastening wood
• Feature 04: Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Feature 05: Zinc plated with a baked-on ceramic coating
• Feature 06: Designed for installation with a cordless drill or impact driver
• Feature 07: Use in dry interior environments only
• Feature 08: Drill bit diameter: 5/32 in.
• Feature 09: 6-lobe flat head style for a smooth installed profile (T25 driver bit included)
• Feature 10: Quantity: 200
• Assembled Depth - Imperial: 0.360
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.360
• Assembled Width UOM - Imperial: in.
• Base Product ID: TNT_Screw
• Base Product Name: Titen Turbo™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Concrete Screw
• Country of Origin: TW
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 183743089027415789507029538237398667747
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Concrete Screw
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 558
• Shipping Weight: 1696.878
• Short Product Name: 3/16 X 2-3/4 FLAT TITEN TURBO 200 BOX
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/tnt_screw/p/titen-turbo
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• US Patents: 11,002,305
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAC Reference: 707392011040
