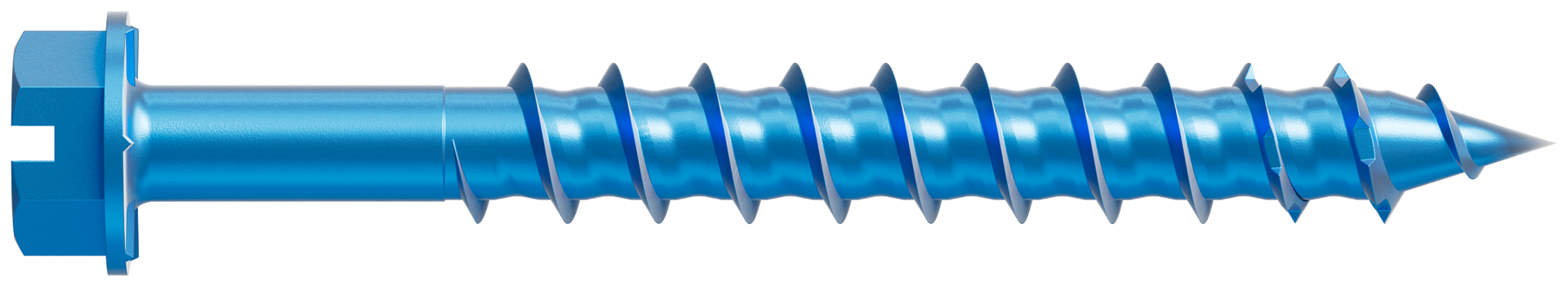

Simpson Strong-Tie TNT25214HB Titen Turbo™ — 1/4 in. x 2-1/4 in. Hex-Head Concrete and Masonry Screw, Blue (2000-Qty)

The Simpson Strong-Tie® Titen Turbo™ screw anchor is fast and easy to install, and incredibly reliable in its performance. The secret behind the performance of the Titen Turbo lies in a thread design that lowers driving torque while providing superior holding power. The revolutionary Torque Reduction Channel between the threads gives drilling dust a place to go, thereby significantly reducing torque-related issues like binding, stripping and snapping. This screw anchor delivers consistently trouble-free installation and fastening strength you can depend on.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole
• Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
• Serrated screw point for easier starts when fastening wood
• Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Zinc plated with a baked-on ceramic coating
• Designed for installation with a cordless drill or impact driver
• Use in dry interior environments only
• Drive type: 5/16 in. hex head
• Quantity: 2,000 per package

Specifications

• ERP Part Number: TNT25214HB
• UPC: 707392033424
• GTIN: 707392033424
• Feature 01: Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole
• Feature 02: Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
• Feature 03: Serrated screw point for easier starts when fastening wood
• Feature 04: Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Feature 05: Zinc plated with a baked-on ceramic coating
• Feature 06: Designed for installation with a cordless drill or impact driver
• Feature 07: Use in dry interior environments only
• Feature 08: Drive type: 5/16 in. hex head
• Feature 09: Quantity: 2,000 per package
• Install With: Installs with Standard ANSI drill bit
• Assembled Depth - Imperial: 0.415
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.428
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.415
• Assembled Width UOM - Imperial: in.
• Base Product ID: TNT_Screw
• Base Product Name: Titen Turbo™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Concrete Screw
• Coating: Zinc Plated with Ceramic Coating
• Color: Standard Blue
• Country of Origin: TW
• Customer Unit: Yes
• Diameter (in.): 1/4
• Display Unit/Measure: EA
• Drill Bit Diameter (in.): 3/16
• Drive Type: 5/16 in. Hex
• GUID: 48732470027005280388792093022965487224
• Head Type: Hex Head
• Length (in.): 2 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 9.94
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.75
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 9.94
• Package Width UOM - Imperial: in.
• Packaging Quantity: 2000
• Packaging Type: Box
• Product Class: Concrete Screw
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 41.322
• Short Product Name: Titen Turbo 1/4 x 2-1/4 Hex 2000pc
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/tnt_screw/p/titen-turbo
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Wrench Size (in.): 5/16
• PAL Reference: 50707392033429
