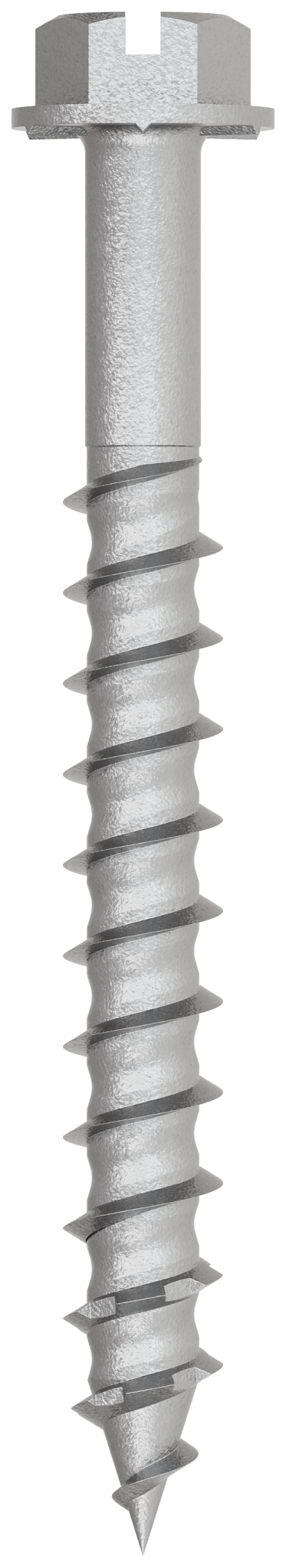

Simpson Strong-Tie TNTSS625214H Titen Turbo™ — 1/4 in. x 2-1/4 in. Type 316 Stainless-Steel Hex-Head Concrete and Masonry Screw (50-Qty)

The Simpson Strong-Tie® Titen Turbo™ stainless-steel concrete and masonry screw anchor is engineered for superior performance in corrosive or extreme environments. It offers enhanced corrosion resistance, making it ideal for applications exposed to saltwater, chemicals or other harsh conditions. The Titen Turbo screw anchor features an innovative Torque Reduction Channel that displaces drilling dust where it can’t obstruct thread action, significantly reducing binding, stripping and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing superior holding power. The Torque Reduction Channel also allows more space for dust to help prevent anchors from bottoming out in smaller-diameter screw holes. This screw anchor features a serrated leading edge to cut into concrete or masonry, and a pointed tip for fast, easy installation in wood-to-concrete and wood-to-wood anchoring applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Type 316 stainless-steel body for long-lasting corrosion resistance in severe environments
• Hardened, alloy-steel tip with serrations to cut through concrete
• Engineered TruShield™ coating provides additional protection against dissimilar metals
• Superior tension load performance
• Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Designed for installation with an impact driver or cordless drill; installation using the Titen Turbo Installation Tool is recommended
• Drill bit diameter: 3/16 in.
• Drive type: 5/16 in. hex head
• Quantity: 50 per package

Specifications

• ERP Part Number: TNTSS625214H
• UPC: 707392031727
• GTIN: 707392031727
• Feature 01: Type 316 stainless-steel body for long-lasting corrosion resistance in severe environments
• Feature 02: Hardened, alloy-steel tip with serrations to cut through concrete
• Feature 03: Engineered TruShield™ coating provides additional protection against dissimilar metals
• Feature 04: Superior tension load performance
• Feature 05: Matched-tolerance bit not required; use a standard ANSI drill bit for installation
• Feature 06: Designed for installation with an impact driver or cordless drill; installation using the Titen Turbo Installation Tool is recommended
• Feature 07: Drill bit diameter: 3/16 in.
• Feature 08: Drive type: 5/16 in. hex head
• Feature 09: Quantity: 50 per package
• Install With: Installs with Standard ANSI drill bit
• Assembled Depth - Imperial: 0.415
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.428
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.415
• Assembled Width UOM - Imperial: in.
• Base Product ID: TNT-SS_Screw
• Base Product Name: Titen Turbo™ Stainless Steel
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Concrete Screw
• Coating: TruShield™ Coating
• Country of Origin: TW
• Customer Unit: Yes
• Diameter (in.): 1/4
• Display Unit/Measure: EA
• Drill Bit Diameter (in.): 3/16
• Drive Type: 5/16 in. Hex
• GUID: 44742344339791588841162067444549543877
• Head Type: Hex Head
• Length (in.): 2 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 3.93
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 1.77
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Contractor Pack
• Product Class: Concrete Screw
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 1.343
• Short Product Name: Titen Turbo 316SS 1/4 x 2-1/4 Hex 50pc
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/tnt-ss_screw/p/titen-turbo-stainless-steel
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Wrench Size (in.): 5/16
• CAR Reference: 10707392031724
• PAL Reference: 50707392031722
