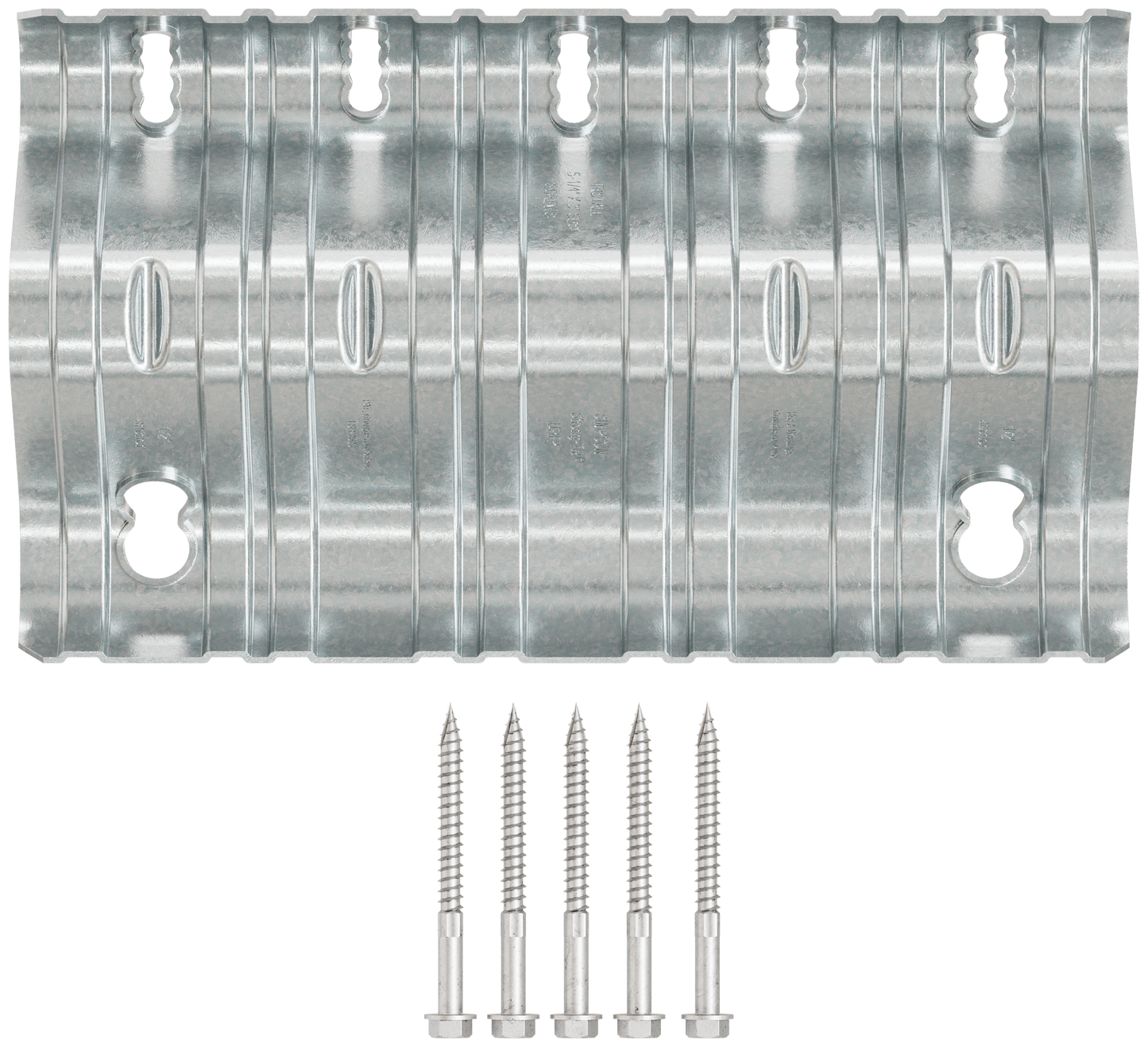

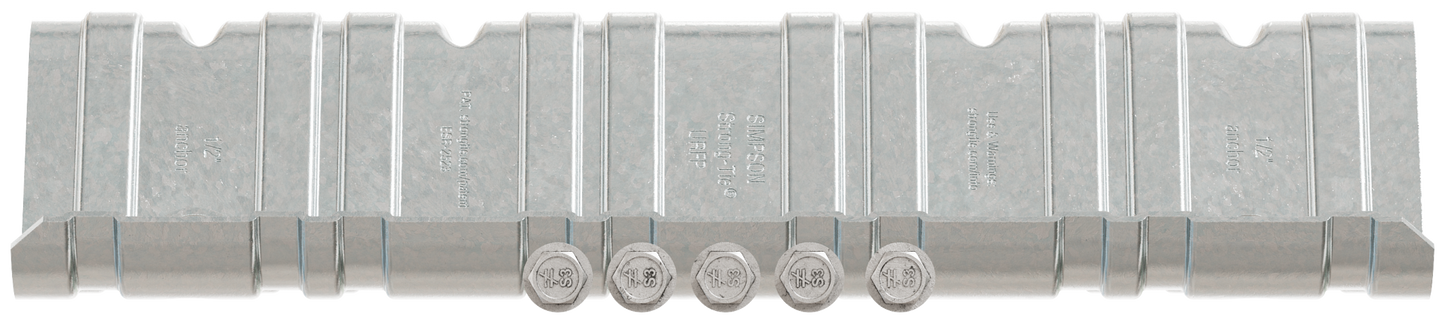

Simpson Strong-Tie URFP-SDS3-B URFP® 10-5/8 in. x 6-1/4 in. Universal Retro Foundation Plate with Screws (570-Qty)

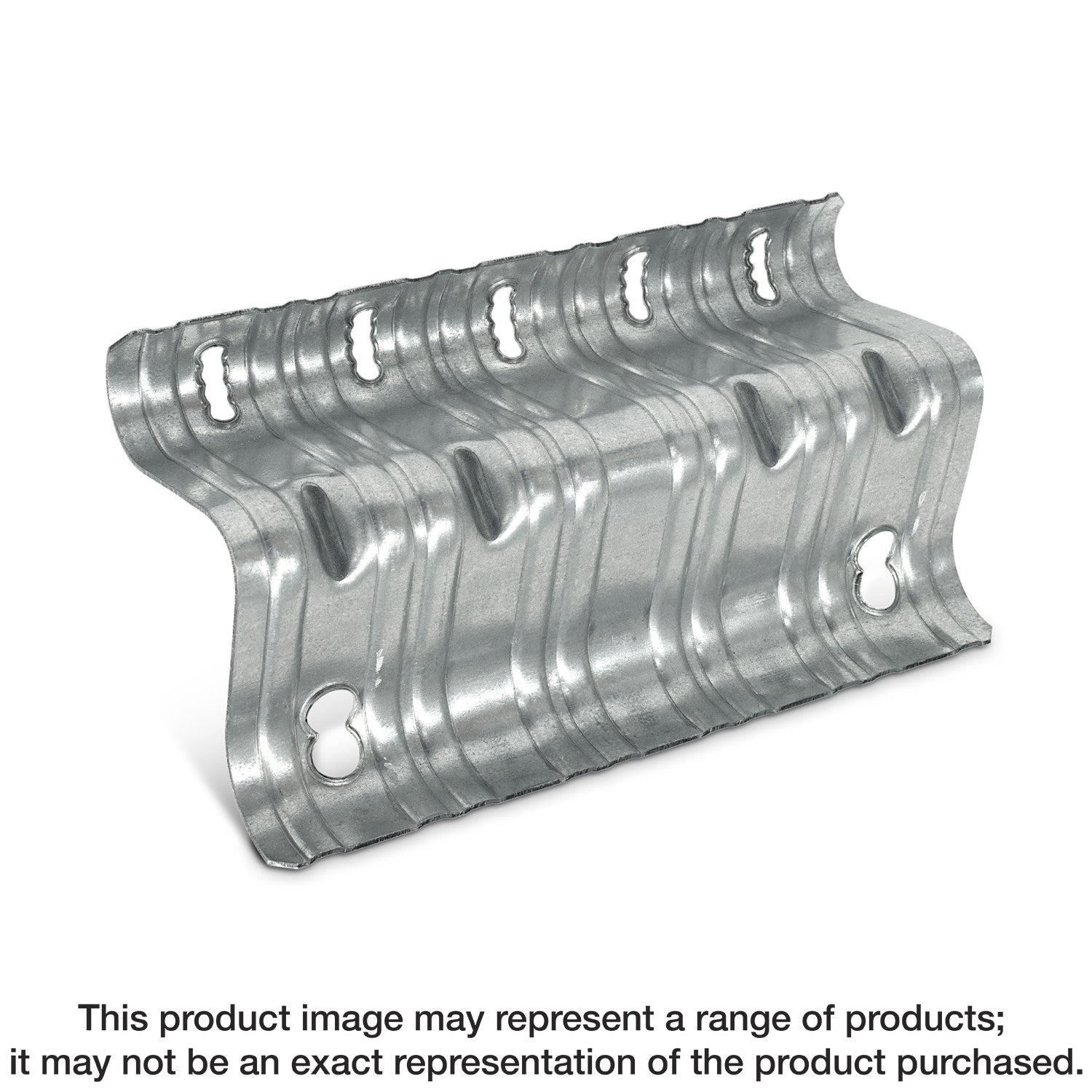

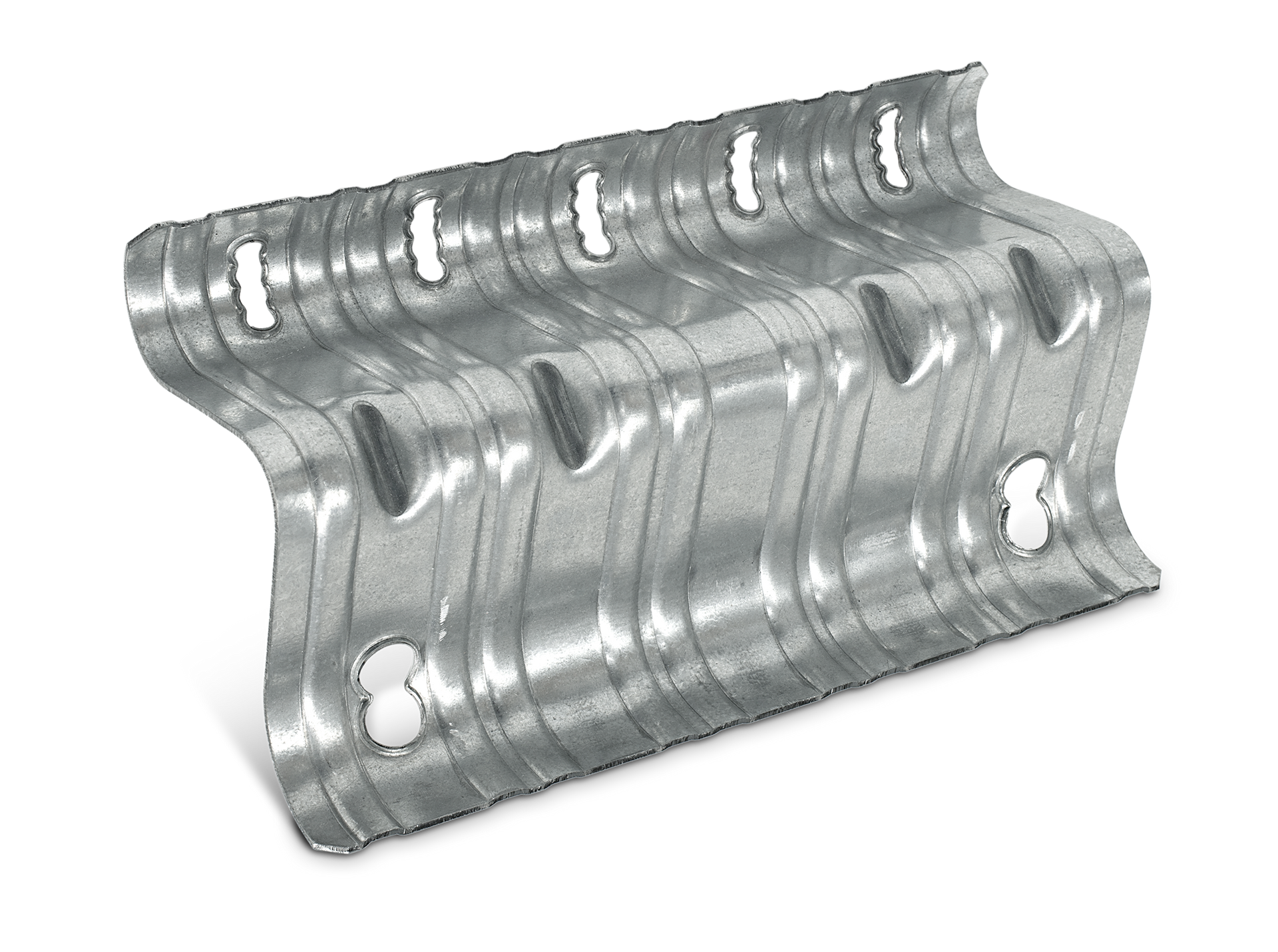

Ideal where there is minimum vertical clearance, the URFP® universal retrofit foundation plate provides a retrofit method to secure the mudsill to the foundation. This design allows installation flexibility when the mudsill is offset or inset from the foundation edge. With its combination of longitudinal embossments, stiffening darts and scalloped slotted holes, the URFP allows for a one-for-one replacement of 1/2-in. or 5/8-in. mudsill anchors as well as fixity to both the SDS screws and required concrete anchorage.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The higher strength of the new, stiffer design makes it a one-for-one replacement for a 1/2 in. or 5/8 in. diameter anchor bolt
• Suits a variety of foundation types and mudsill positions — from a 2-1/2 in. setback from the inside edge of the foundation to a 1/2 in. overhang (and everything in-between)

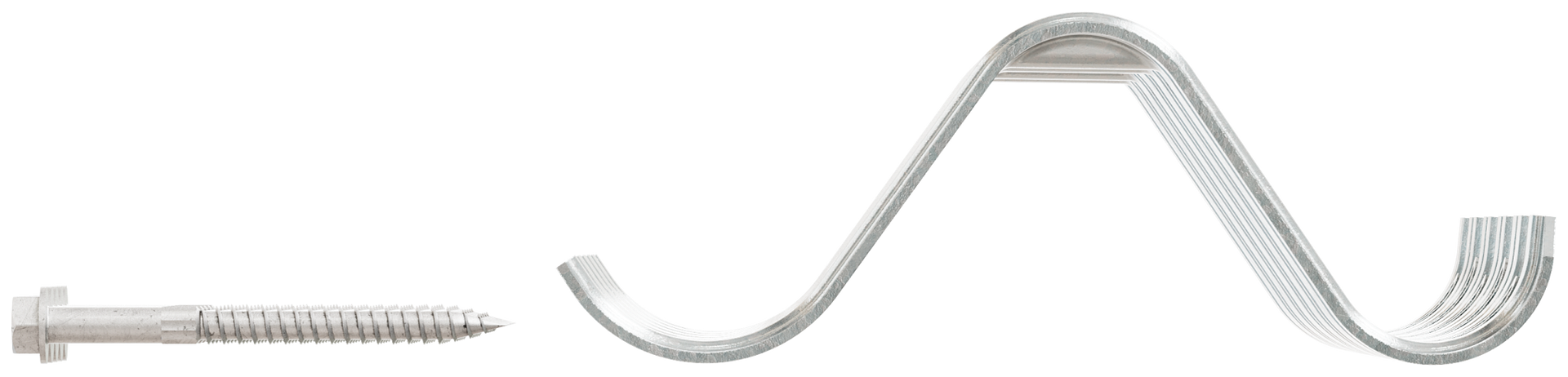

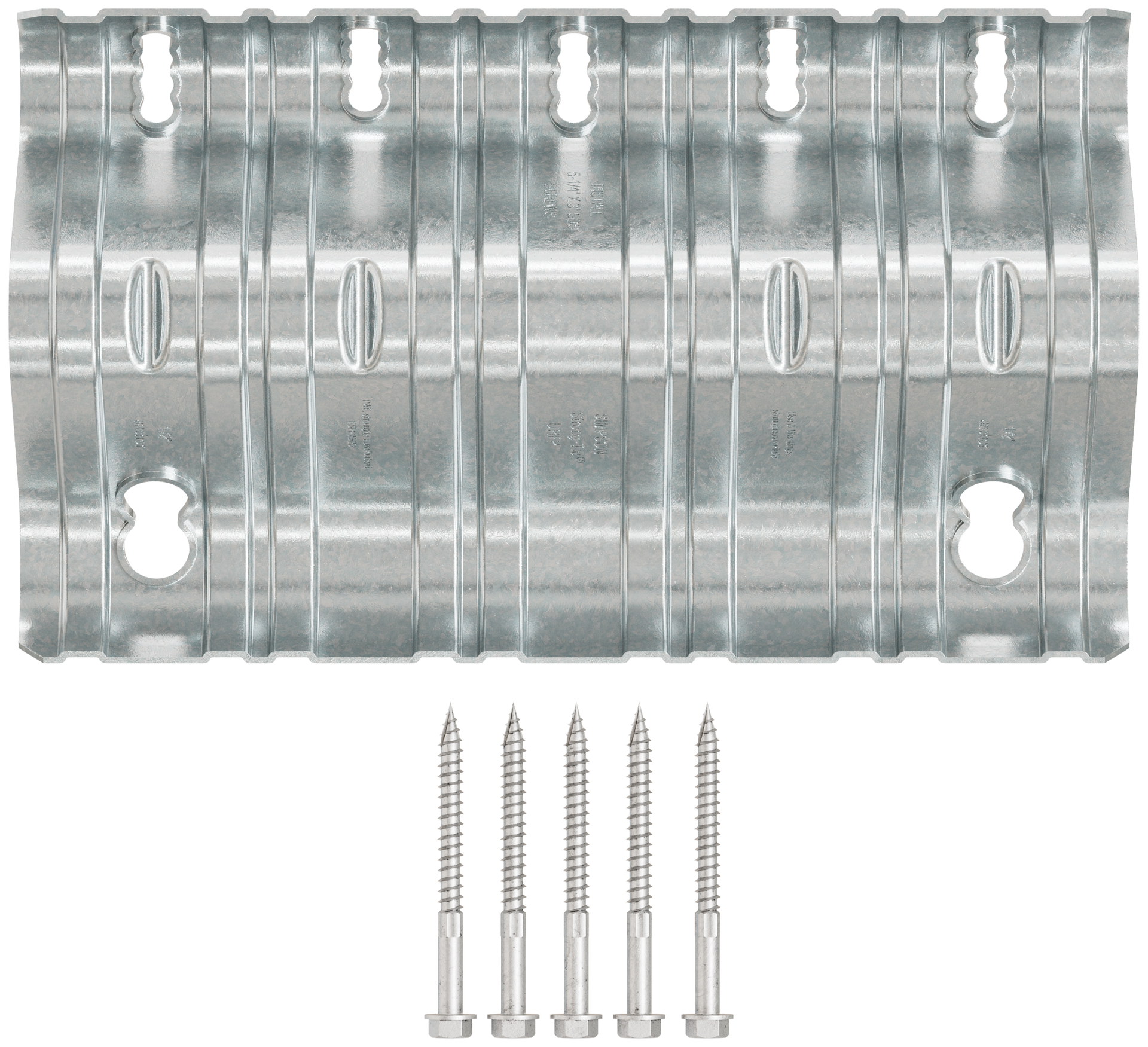

• Includes 1/4 in. x 3 in. Strong-Drive® SDS Heavy-Duty Connector screws
• Width: 10-5/8 in.
• Height: 6-1/4 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance
• Quantity: 570

Specifications

• ERP Part Number: URFP-SDS3-B
• UPC: 707392273073
• GTIN: 707392273073
• Feature 01: The higher strength of the new, stiffer design makes it a one-for-one replacement for a 1/2 in. or 5/8 in. diameter anchor bolt
• Feature 02: Suits a variety of foundation types and mudsill positions — from a 2-1/2 in. setback from the inside edge of the foundation to a 1/2 in. overhang (and everything in-between)
• Feature 03: Includes 1/4 in. x 3 in. Strong-Drive® SDS Heavy-Duty Connector screws
• Feature 04: Width: 10-5/8 in.
• Feature 05: Height: 6-1/4 in.
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Feature 08: Quantity: 570
• Install With: (2) 1/2 in. diameter anchor bolts and (5) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
• Assembled Depth - Imperial: 2.20313
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: URFP_Plate
• Base Product Name: URFP®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Foundation Anchors > Foundation Plate
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 1497690287059119835695208369394479073
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 46.69
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 29.25
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 40.69
• Package Width UOM - Imperial: in.
• Packaging Quantity: 570
• Packaging Type: Carton
• Product Class: Foundation Plate
• Product Includes: (5) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws per connector
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 1355.7
