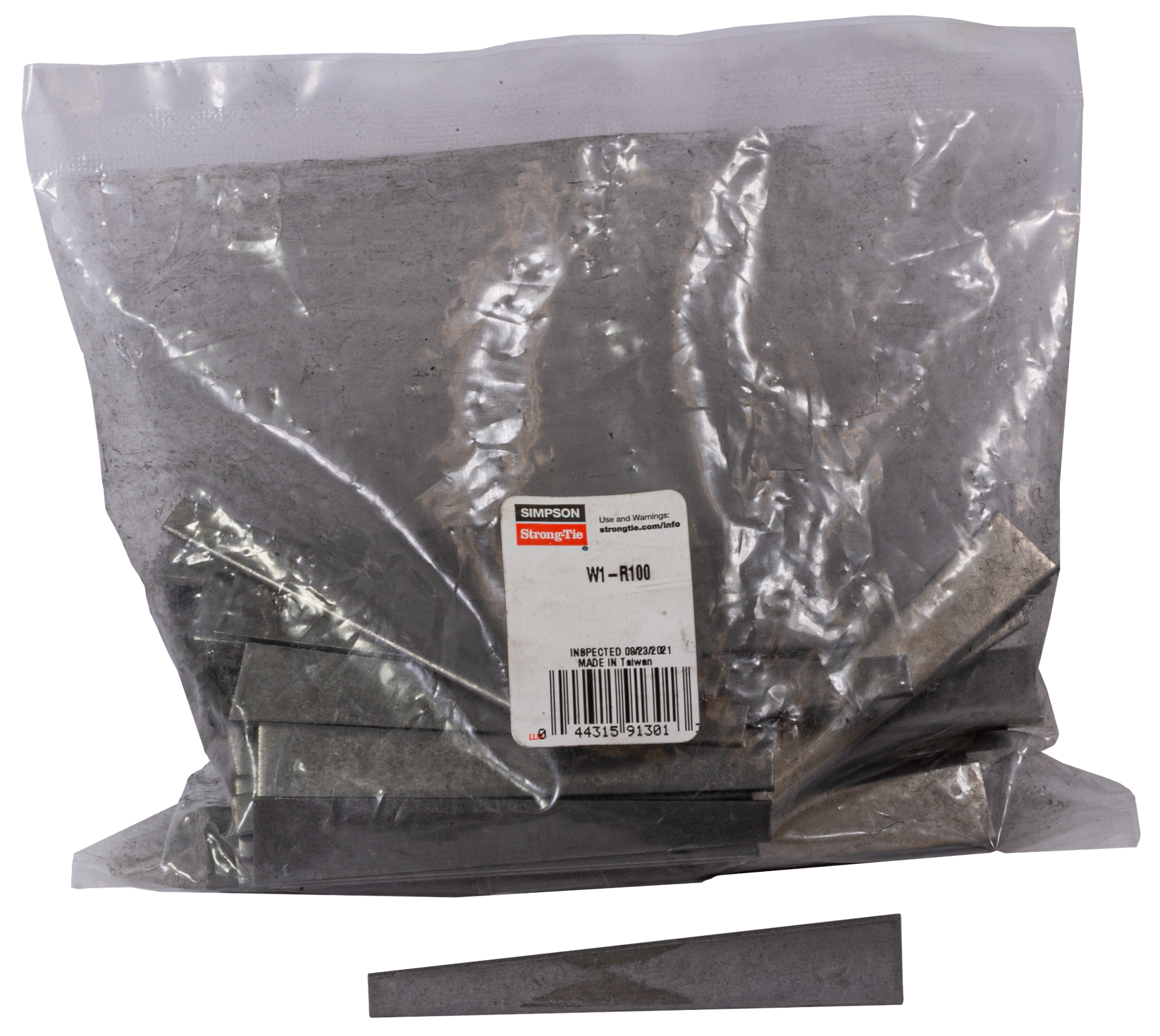

Simpson Strong-Tie W1-R100 14-Gauge Galvanized Wedge for Form Ties (100-Qty)

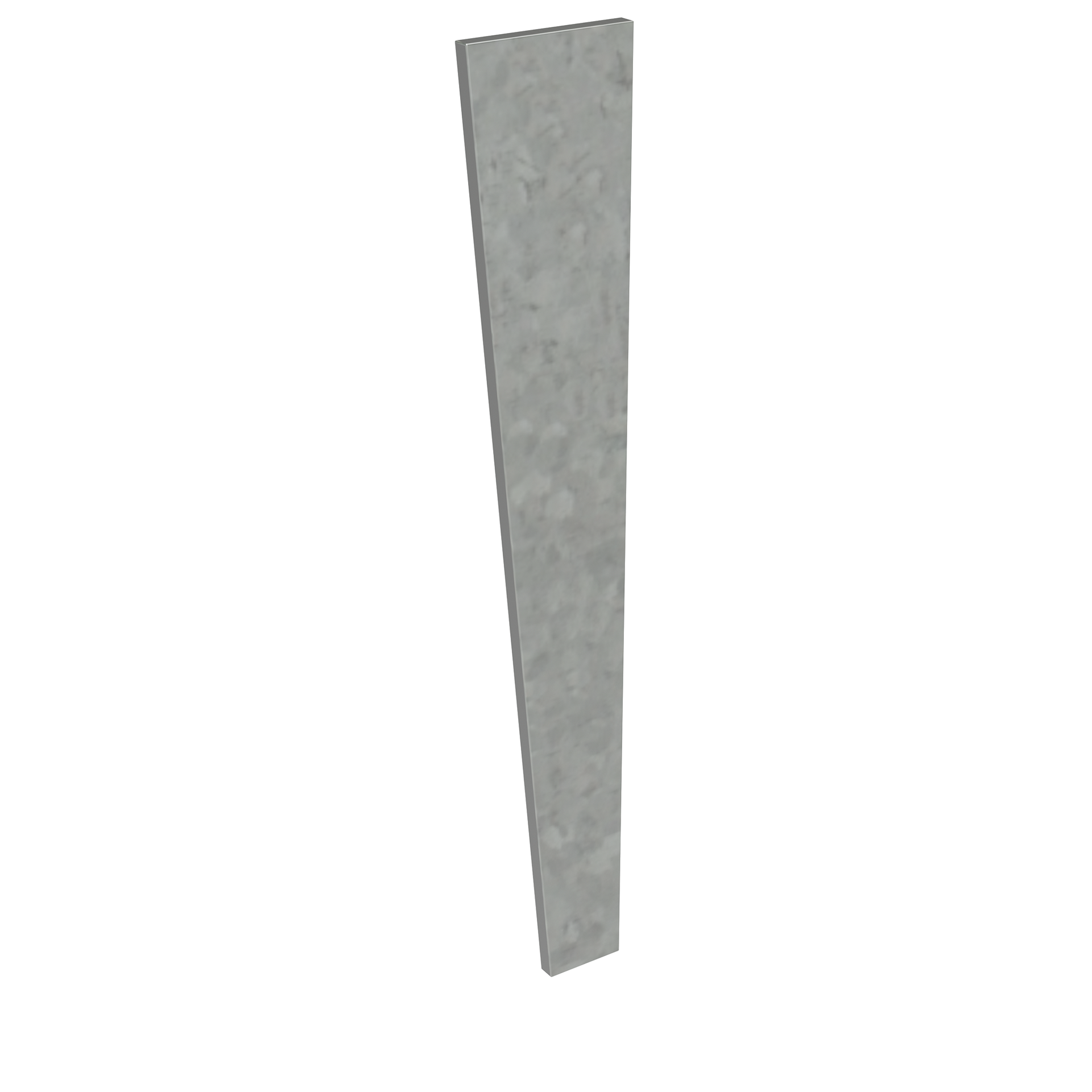

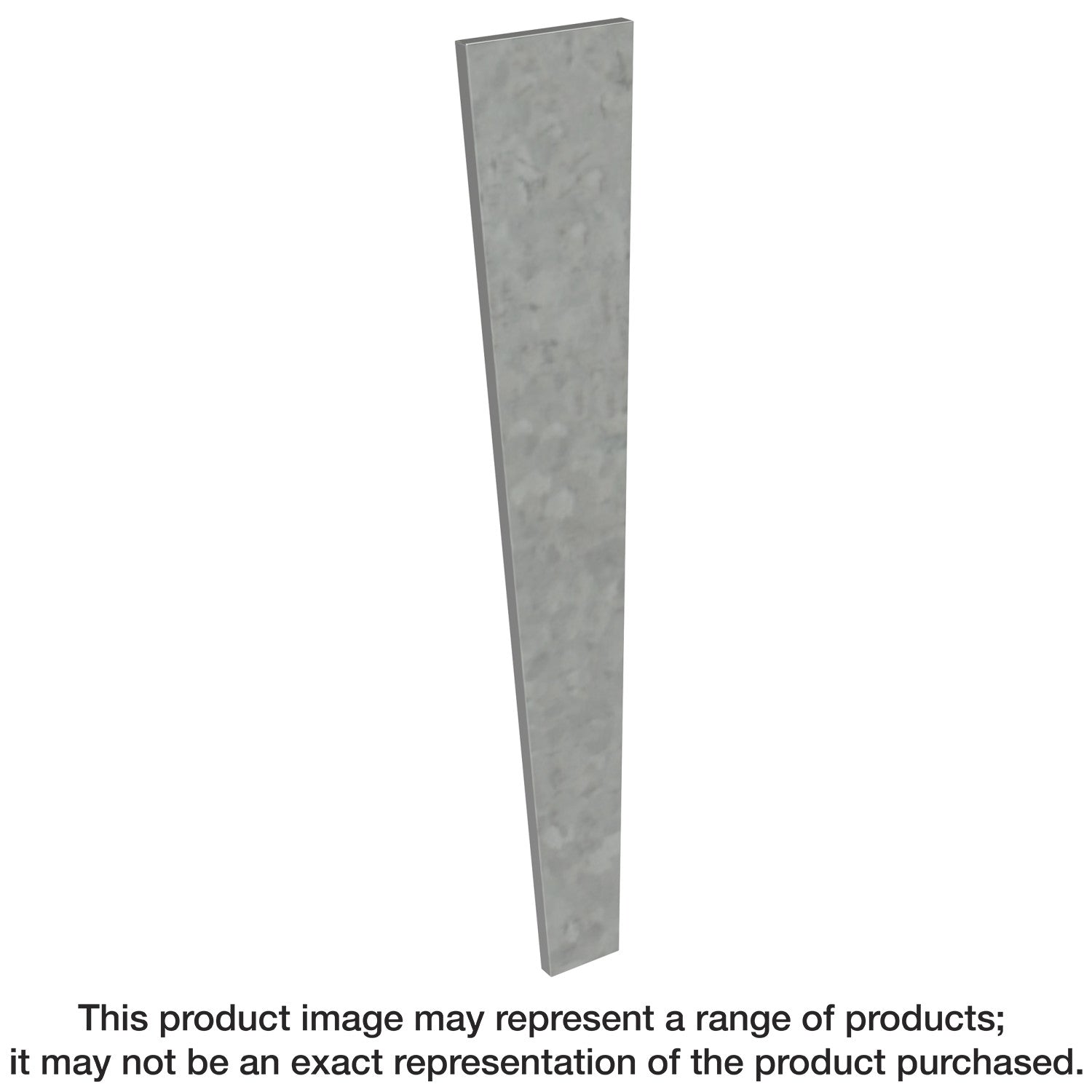

The W1 is a required component of the Simpson Strong-Tie® WT wedge form tie that is sold separately. The wedge tie (WT), a form tie that secures concrete forms in place while the concrete is poured, requires a wedge on each end to hold the form boards in place. These wedges are designed for easy installation into and removal from the provided slots.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Designed and manufactured to work specifically with the WT wedge form tie
• Tapered design accommodates expansion and contraction of wood as a result of moisture content
• One size of W1 fits both composite and lumber WT models
• The WT's 5/8-in. wide formed "V" design for rigidity allows accurate form spacing and support
• Use two of these 3-1/2 in. long wedges for each WT tie
• Made from 14-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 100

Specifications

• ERP Part Number: W1-R100
• UPC: 44315913013
• GTIN: 44315913013
• Feature 01: Designed and manufactured to work specifically with the WT wedge form tie
• Feature 02: Tapered design accommodates expansion and contraction of wood as a result of moisture content
• Feature 03: One size of W1 fits both composite and lumber WT models
• Feature 04: The WT's 5/8-in. wide formed "V" design for rigidity allows accurate form spacing and support
• Feature 05: Use two of these 3-1/2 in. long wedges for each WT tie
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Quantity: 100
• Install With: Installs with the WT wedge form tie; (2) W1 wedges required for each tie
• Assembled Depth - Imperial: 0.07
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: W_Wedge
• Base Product Name: W1
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Foundation Anchors > Form-Tie Wedge
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: PAC
• EAN category: UC
• Fasteners Included: No
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 14
• GUID: 199281481064800557989629784437000735204
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 7.125
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 2
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Bag
• Product Class: Form-Tie Wedge
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3
• Short Product Name: WEDGE TIE (100 count)
• Strongtie.com URL: https://www.strongtie.com/concrete_miscellaneousconnectors/w_wedge/p/w
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Foundation Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315913010
