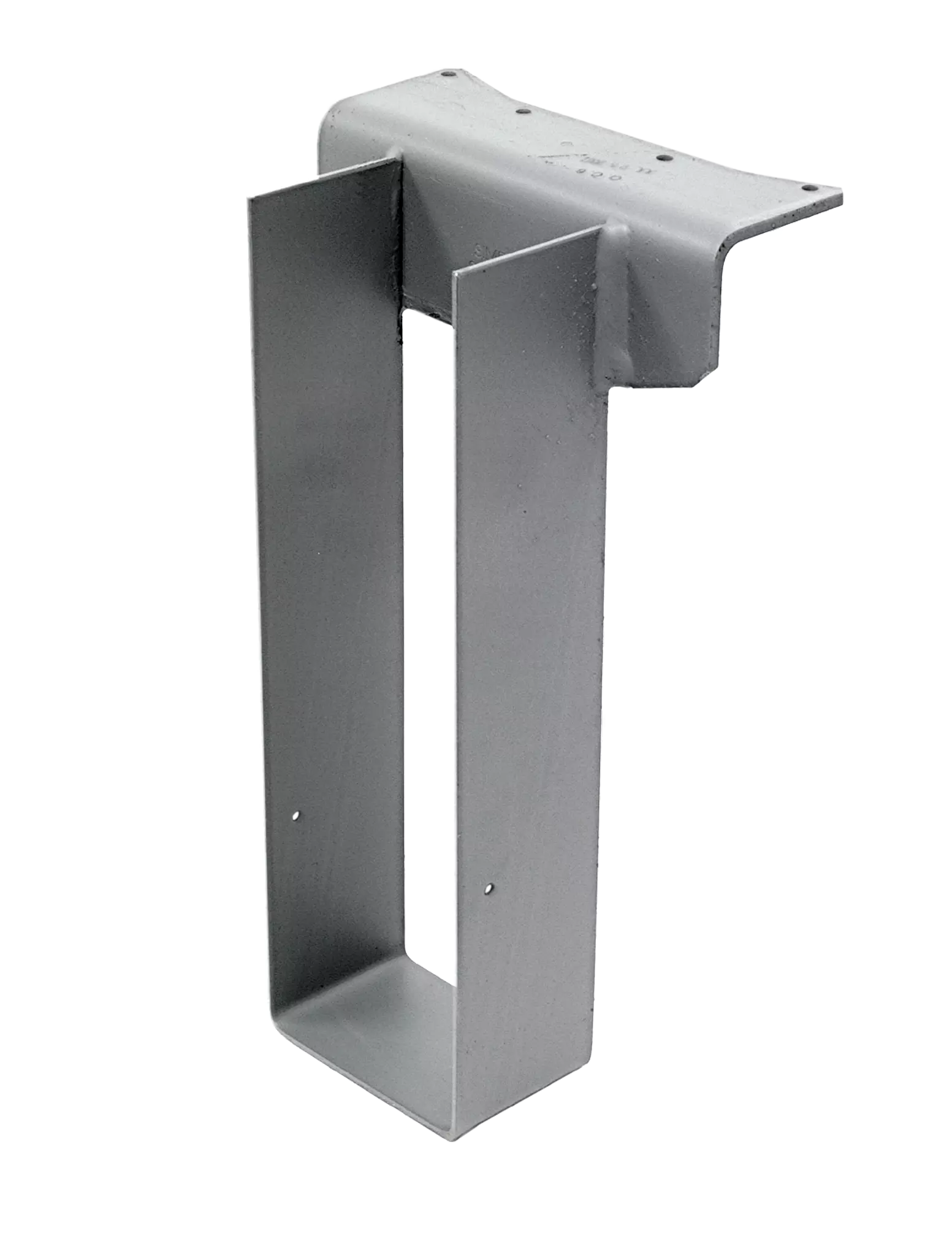

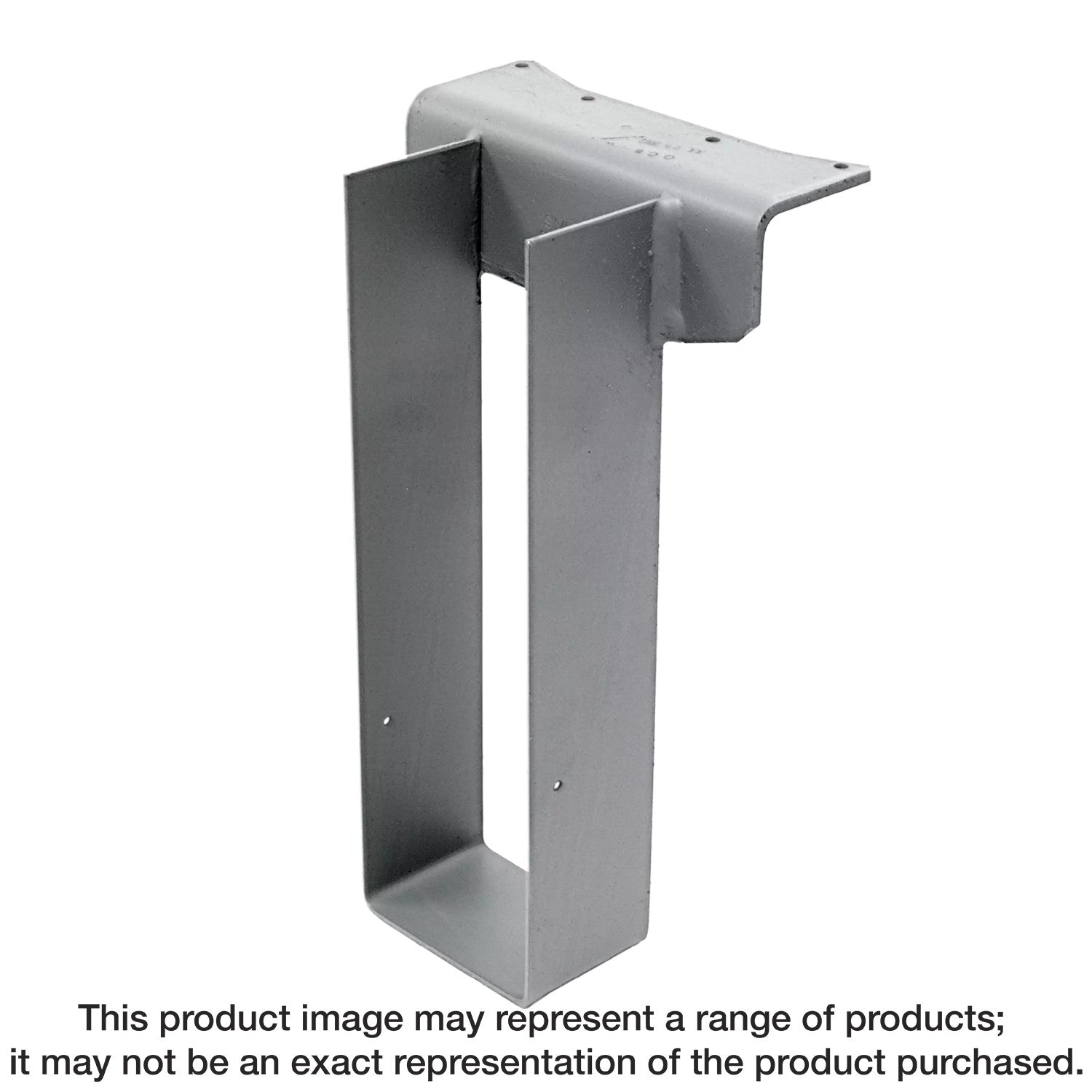

Simpson Strong-Tie WP11 WP Welded Top-Flange Joist Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood

The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Highly modifiable with alteration options including opened/closed top flange and offset top flange
• Top flange may be sloped to a maximum of 35° to accommodate a sloped header
• Features a solid one-piece top flange that provides extra stability in panelized roof applications
• Seat width: 1-13/16 in.
• Joist size: 1-3/4 in. x 11-7/8 in.
• Top flange made from 7-gauge steel; stirrup made from 12-gauge steel
• Simpson Strong-Tie gray paint

Specifications

• ERP Part Number: WP11
• UPC: 44315424700
• GTIN: 44315424700
• Feature 01: Highly modifiable with alteration options including opened/closed top flange and offset top flange
• Feature 02: Top flange may be sloped to a maximum of 35° to accommodate a sloped header
• Feature 03: Features a solid one-piece top flange that provides extra stability in panelized roof applications
• Feature 04: Seat width: 1-13/16 in.
• Feature 05: Joist size: 1-3/4 in. x 11-7/8 in.
• Feature 06: Top flange made from 7-gauge steel; stirrup made from 12-gauge steel
• Feature 07: Simpson Strong-Tie gray paint
• Assembled Depth - Imperial: 5.8585
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.142
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7
• Assembled Width UOM - Imperial: in.
• Base Product ID: WP_Hanger
• Base Product Name: WP
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: Top flange – 7, stirrup – 12
• GUID: 89662854173504568965462617772424134533
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 1-3/4 in. x 11-7/8 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Quantity: 1
• Shipping Weight: 3.97
• Short Product Name: 1-3/4 X 11-7/8 TOP FLANGE I-JOIST HANGER
