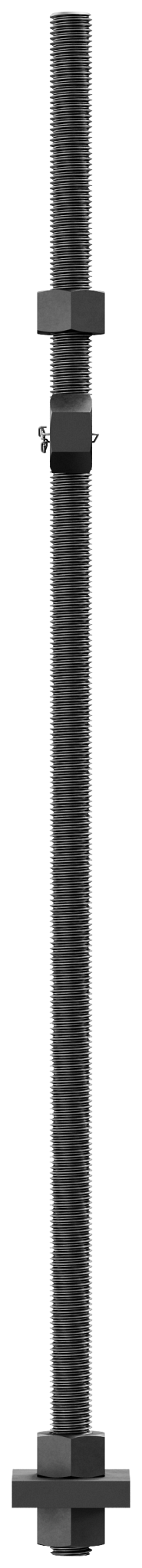

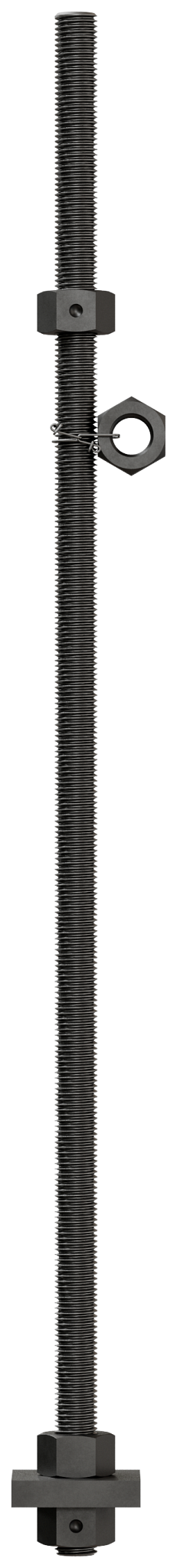

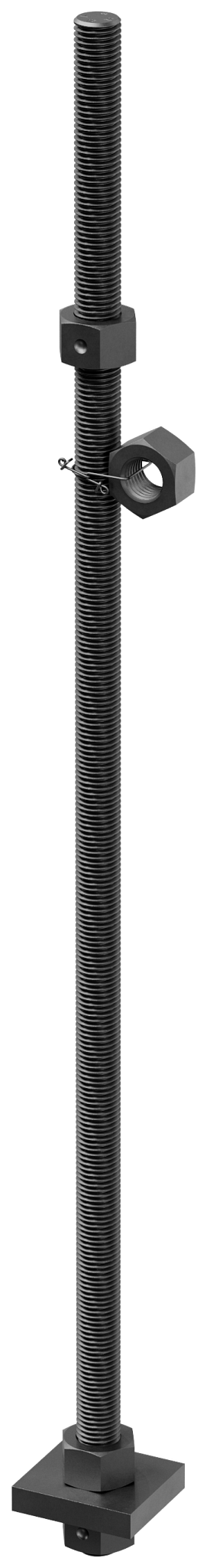

Simpson Strong-Tie WSWH-AB1X36HS 1 in. x 36 in. Strong-Wall® High-Strength Wood Shearwall High-Strength Anchor Bolt

The WSWH-AB is a heavy-duty preassembled anchor bolt used to attach Strong-Wall high-strength wood shearwalls (WSWH) to concrete foundations. With a 1-in. diameter and a variety of length options, these anchor bolts offer flexibility for meeting specific project demands. A stamped head makes inspection and identification easy with a No-Equal® symbol, bolt length, bolt diameter and optional “HS” for high strength, if specified.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Fixed-in-place heavy hex compression nut to improve performance
• Head stamp for easy identification and inspection
• Supplied with extra nut for attachment to anchor template
• Made from ASTM A193 Grade B7
• Diameter: 1 in.
• Compression nut at 2-1/8 in.
• Total length: 36 in.
• WSWH accessories are compatible only with WSWH panels

Specifications

• ERP Part Number: WSWH-AB1X36HS
• UPC: 707392014607
• GTIN: 707392014607
• Feature 01: Fixed-in-place heavy hex compression nut to improve performance
• Feature 02: Head stamp for easy identification and inspection
• Feature 03: Supplied with extra nut for attachment to anchor template
• Feature 04: Made from ASTM A193 Grade B7
• Feature 05: Diameter: 1 in.
• Feature 06: Compression nut at 2-1/8 in.
• Feature 07: Total length: 36 in.
• Feature 08: WSWH accessories are compatible only with WSWH panels
• Assembled Depth - Imperial: 3
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 36
• Assembled Width UOM - Imperial: in.
• Base Product ID: WSWH-AB_Bolt
• Base Product Name: WSWH-AB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Strong-Wall® Shearwalls > Shearwall Kits and Anchorage > Anchor Bolt
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 165365457985674595057581851598182723121
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt
• Product Includes: Includes an additional nut for template installation
• Quantity: 1
• Shipping Weight: 8.8
• Short Product Name: HS 1X36 ANCHOR BOLT, COMP NUT 6 1/2 IN
• Strongtie.com URL: https://www.strongtie.com/wswhanchorage_strongwallwoodshearwalls/wswh-ab_bolt/p/wswh-ab
• Subcategory: Strong-Wall® Shearwalls
• Subcategory 2: Shearwall Kits and Anchorage
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
