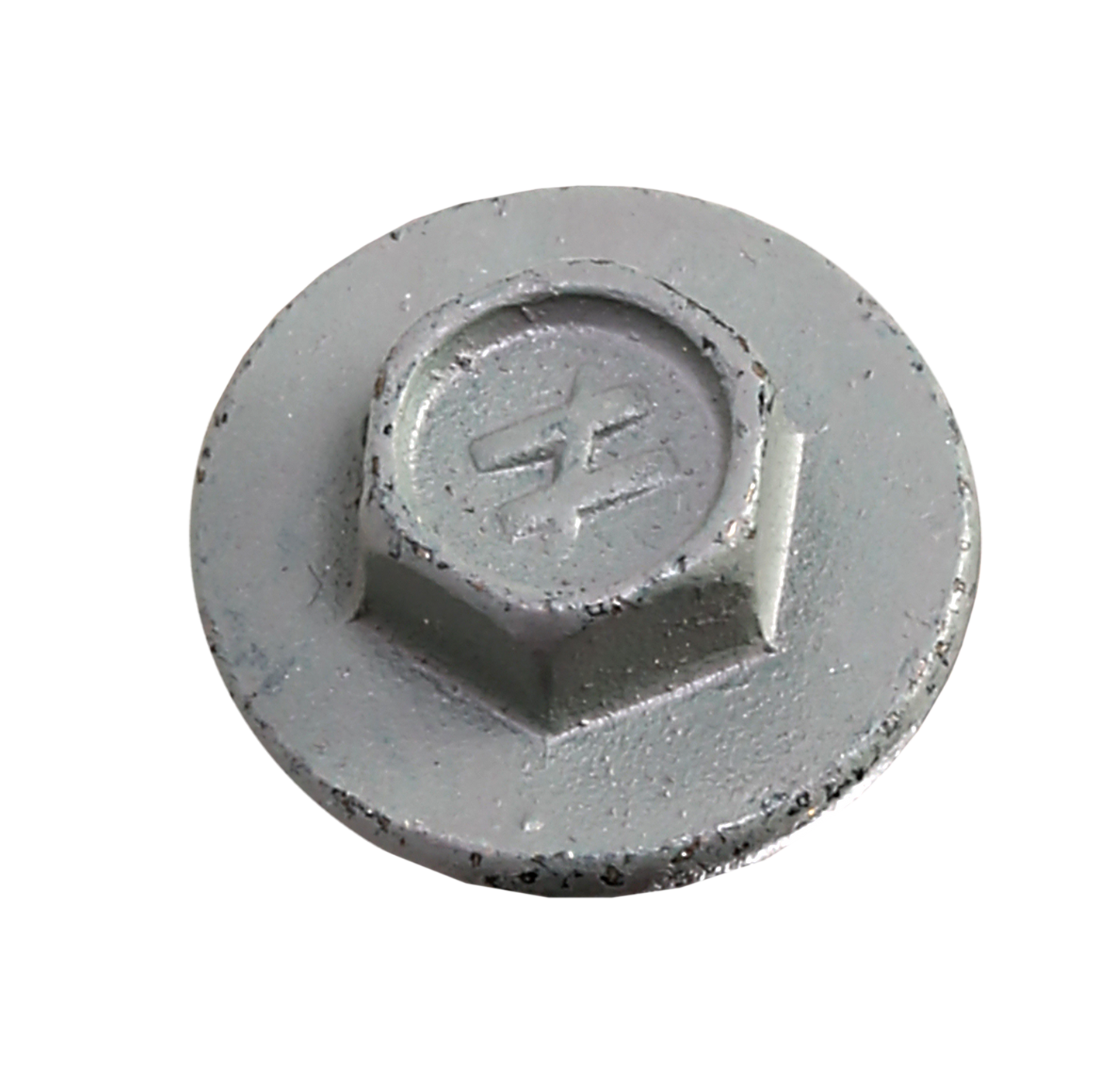

Simpson Strong-Tie XLQ114B1224-250 Strong-Drive® XL LARGE-HEAD METAL Screw — #12 x 1-1/4 in. 5/16 Hex (250-Qty)

Simpson Strong-Tie® Strong-Drive structural fasteners are engineered and extensively tested to meet the needs of the most demanding metal-to-metal applications. Strong-Drive XL Large-Head Metal screws are load tested and code listed, so you can trust that you are getting the load values you need for your application. These screws are the perfect choice when high shear or uplift resistance is required and are an excellent 1-for-1 replacement for pins.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• 5/16-in. hex drive (compatible Simpson Strong-Tie driver bit model: BITHEXR516-R1)
• #5 drill point
• 5/8-in. diameter integral washer
• Length: 1-1/4 in.
• Quik Guard® coating provides corrosion resistance for exterior and certain preservative-treated wood applications
• Quantity: 250

Application

• Cold-Formed Steel

Specifications

• ERP Part Number: XLQ114B1224-250
• UPC: 707392223368
• GTIN: 707392223368
• Feature 01: 5/16-in. hex drive (compatible Simpson Strong-Tie driver bit model: BITHEXR516-R1)
• Feature 02: #5 drill point
• Feature 03: 5/8-in. diameter integral washer
• Feature 04: Length: 1-1/4 in.
• Feature 05: Quik Guard® coating provides corrosion resistance for exterior and certain preservative-treated wood applications
• Feature 06: Quantity: 250
• Applications List: Cold-Formed Steel
• Assembled Depth - Imperial: 0.625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.457
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: XL_Screw
• Base Product Name: Strong-Drive® XL LARGE-HEAD METAL Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Hand-Drive Screw
• Coating: Quik Guard® Coating
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: 5/16 in. Hex
• Finish: Quik Guard® Coating
• GUID: 256366851536098734693963186984527519538
• Head Diameter (in.): 0.630
• Head Type: Hex Washer Head
• Length (in.): 1 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 0.466
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 4.5
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 6
• Package Width UOM - Imperial: in.
• Packaging Quantity: 250
• Packaging Type: Tub
• Point Size: 5
• Point Type: Drill Point
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #12
• Shipping Weight: 4.2
• Short Product Name: #12 X 1-1/4IN 5/16 HEX LG/W #5DP 250 BOX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_metalscrews/xl_screw/p/strong-drive-xl-large-head-metal-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Machine Threads
• TPI: 24
• US Patents: 9,518,599
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392223365
• PAL Reference: 50707392223363
